Description

For tractors with 35 to 75 HP

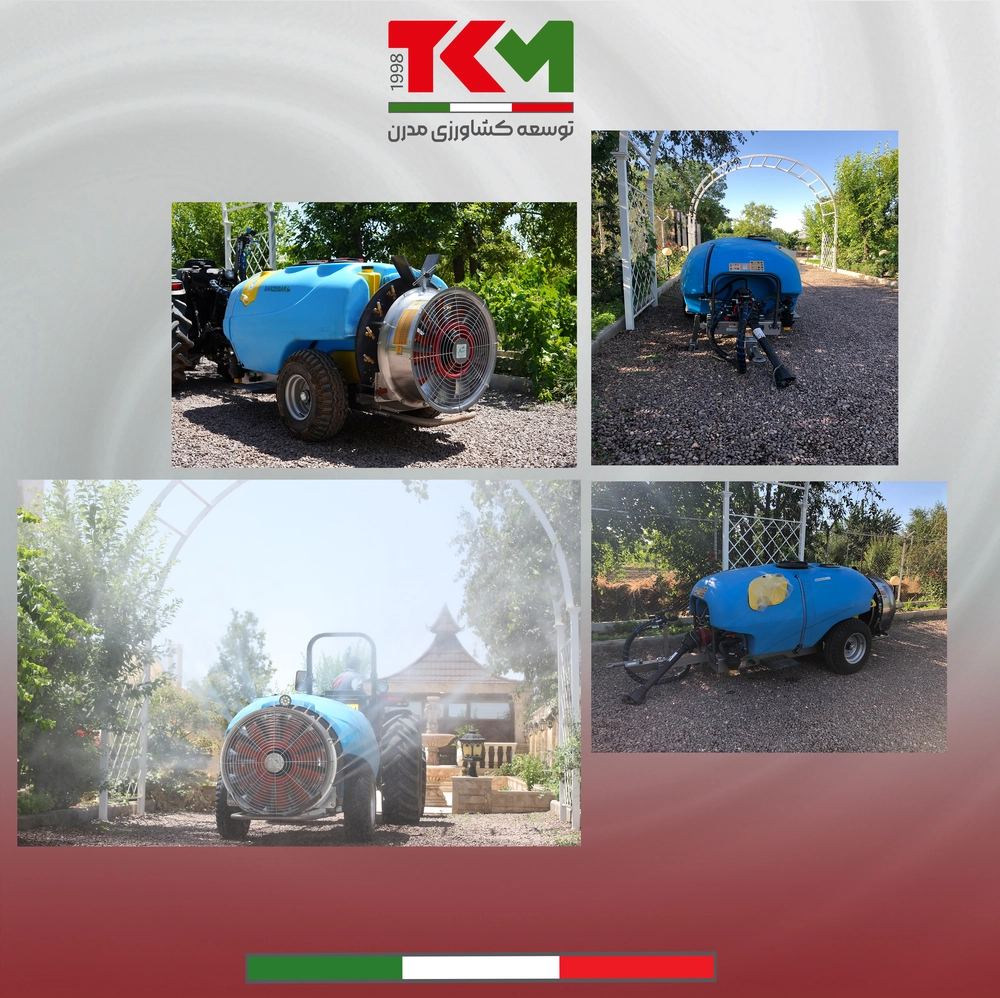

This machine is used for spraying and applying liquid fertilizers in orchards with various trees such as citrus, peaches, and apples.

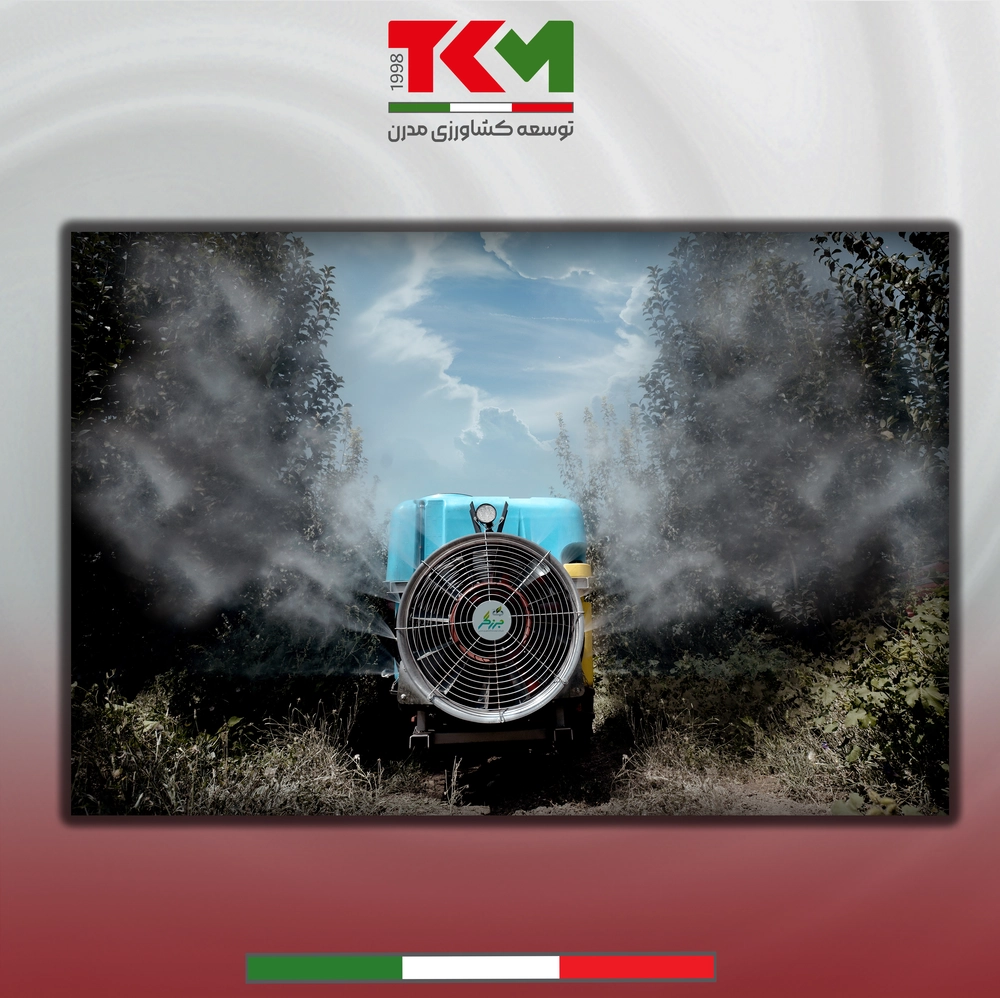

Atomizer sprayers (also known as fan-assisted sprayers) use a large volume of air to distribute the pressurized liquid from the nozzles over a greater distance. The air stream prevents droplet collision and changes in their diameter, ensuring uniform and controlled droplet size throughout the entire spraying process.

Key Features & Advantages

Uniform Spraying: Achieves consistent droplet size, eliminating human error.

1. Reduced Chemical Consumption: Decreases pesticide use by up to 50% compared to lance sprayers, preventing chemical runoff and protecting the environment.
2. Increased Efficiency: Boosts spraying speed up to 7 times, leading to significant savings in labor costs.
3. Adjustable Spray Volume: Allows for precise control of the spray amount as needed.
4. Mounting Options:

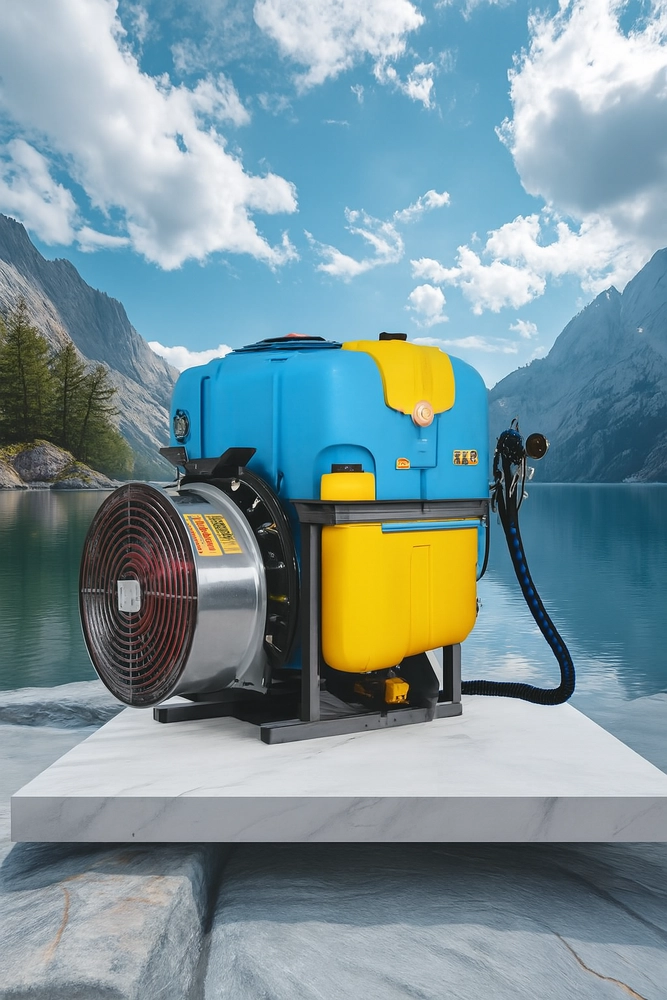

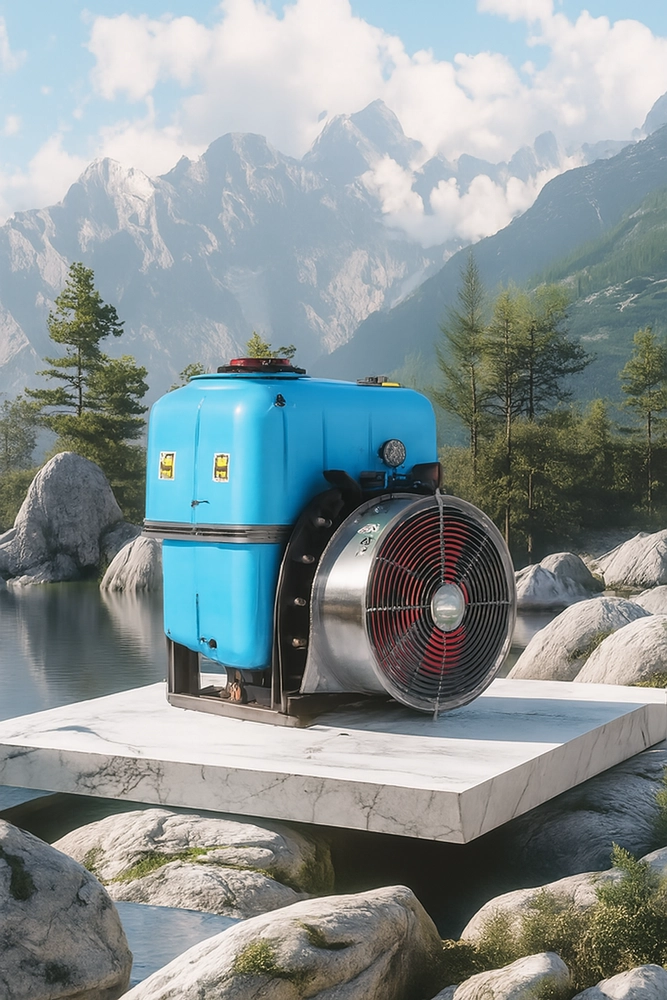

   • Mounted (Tractor-Mounted): Available in 400, 600, 800, and 1000-liter capacities.

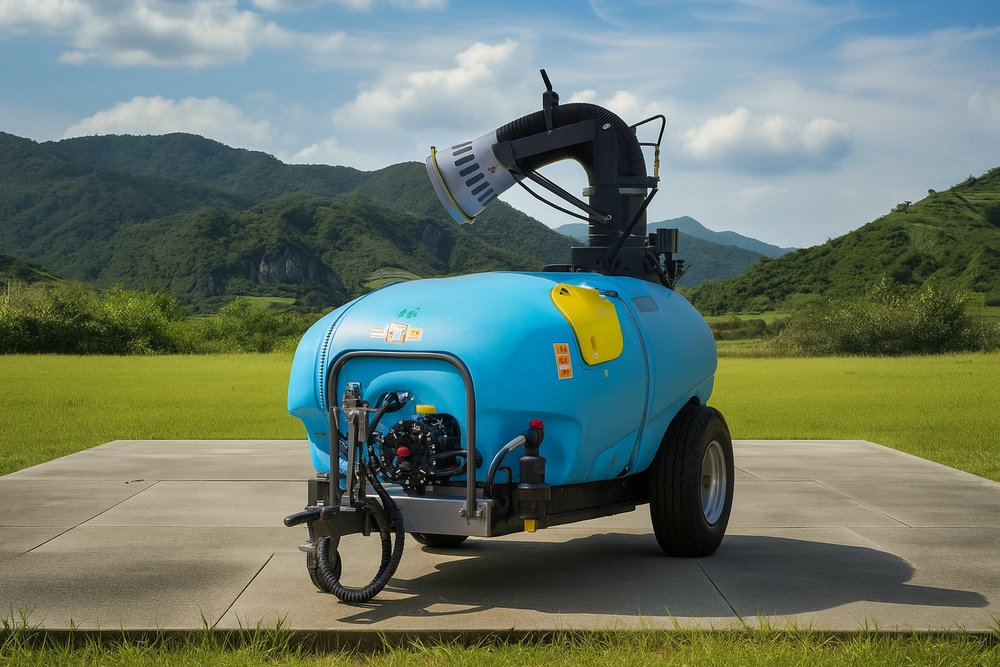

   • Trailed (Wheeled): Available in 1000, 2000, and 3000-liter capacities.
5. Durable Tank: Features a three-part polyethylene tank that is resistant to direct sunlight and chemical agents, including various pesticides. The tank includes a main compartment, a hand-washing tank, and a circuit-washing tank.
6. Suction Filler: Equipped with a suction filler to prevent the tank from contaminating water sources.
7. Anti-Drip Nozzles: Uses double, brass anti-drip nozzles to prevent pesticide waste.
8. High-Pressure Hoses: Utilizes 90-bar hoses for increased durability and longevity.
9. Hydraulic Mixer: A hydraulic agitator ensures a uniform mixture during spraying and prevents pesticides from settling.
10. Articulated Driveshaft: A special articulated driveshaft is used to transfer power from the PTO to the pump, enhancing maneuverability and reducing wear and tear.
11. Powdered Pesticide Agitator: The filter screen in the tank’s entry lid helps dissolve powdered pesticides.
12. Triple Filtration System: Includes a plastic filter for large debris, a brass silicon filter for medium particles, and a final brass filter with a valve at the end of the sprayer to trap sand and prevent nozzle clogging.
13. Durable Chassis: The machine features a 10-ton steel hitch and a sturdy chassis for increased durability.
14. Wide Wheels: Equipped with wide rims and tires for easy operation on slopes and uneven terrain.
15. Adjustable Axle & Hitch: Trailed models have an adjustable axle (length and height) and hitch (length) for optimal adaptability.
16. Advanced Fan Design: Features a clutch-equipped gearbox with two speeds (from 2430 to 1890 RPM). The fan body is made of stainless steel for rust resistance. It includes a fixed propeller for proper air intake and adjustable blades (from 15 to 50 degrees) to control the air angle according to tree height.
17. Robust Frame: The frame is made of industrial square tubing with a protective bottom plate to prevent the sprayer’s base from hitting the ground.
18. Reinforced Wheel Axle: The industrial square tubing of the wheel axle is reinforced with 8mm thick plates.
19. Protective Guard: A 40mm bent pipe guard is installed at the rear to protect the fan and turbine from impacts.
20. Dual-Lid Tank: Features two lids for simultaneous filling of water and pesticide.
21. LED Lighting: Equipped with LED lights for nighttime spraying and safe road travel.
22. Extended Spraying Height: Capable of spraying up to 10 meters high.
23. European Nozzles: Uses anti-drip nozzles that comply with the technical standards of the Eurasian Economic Union.

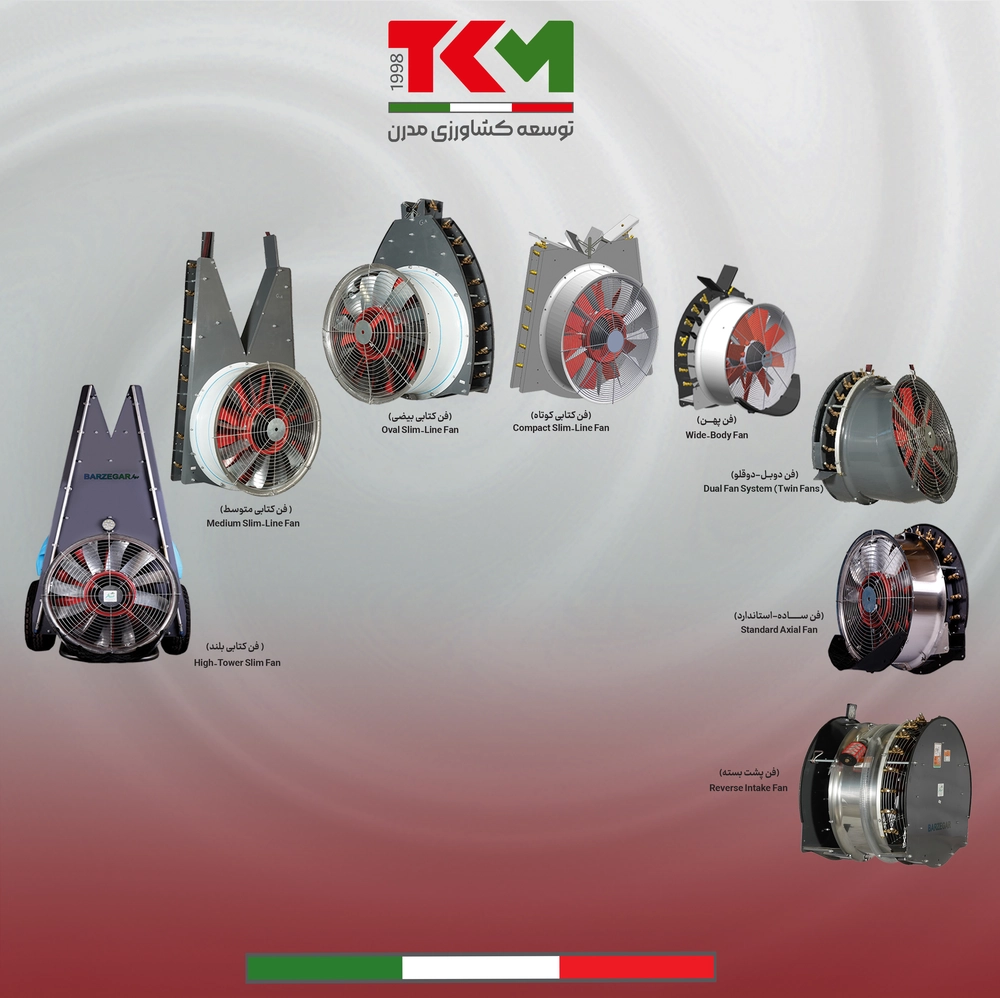

24. Fan Versatility: The chassis can accommodate various fan types (double, single, closed-back, oval, wide, short book-type, long book-type).
25. Lance Sprayer Conversion: Can be converted into a lance sprayer.
26. Toolbox: Includes a dedicated toolbox.
27. Dual-Lid Tank (Trailed Models): Trailed models have a two-lid tank for simultaneous filling of water and pesticide.
