Description

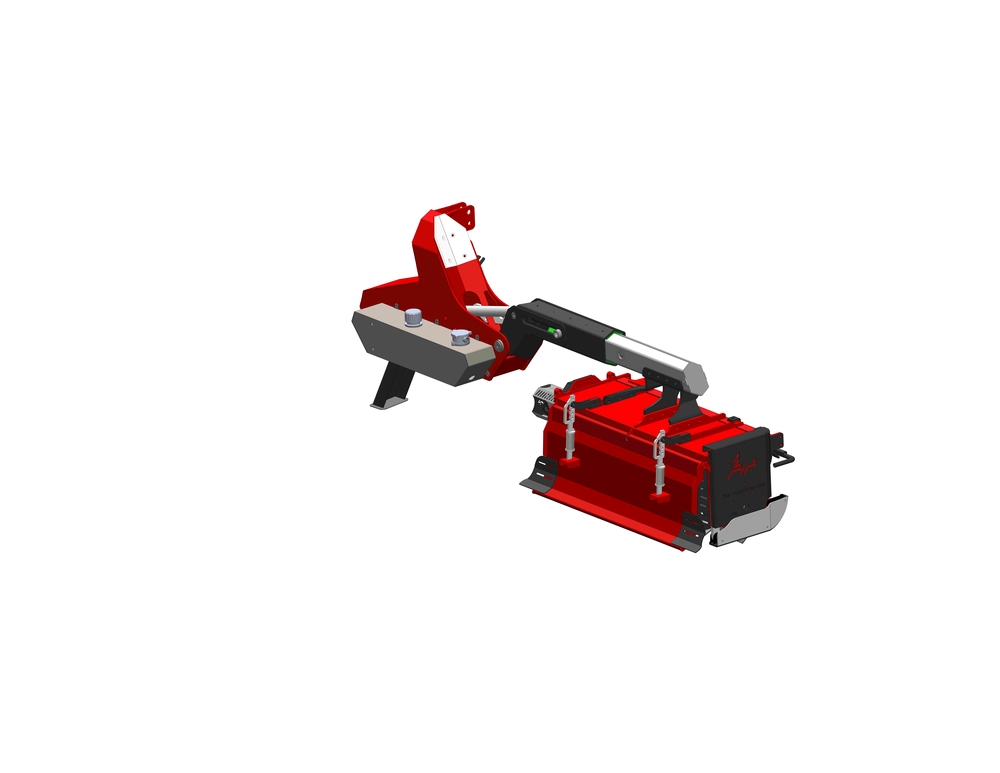

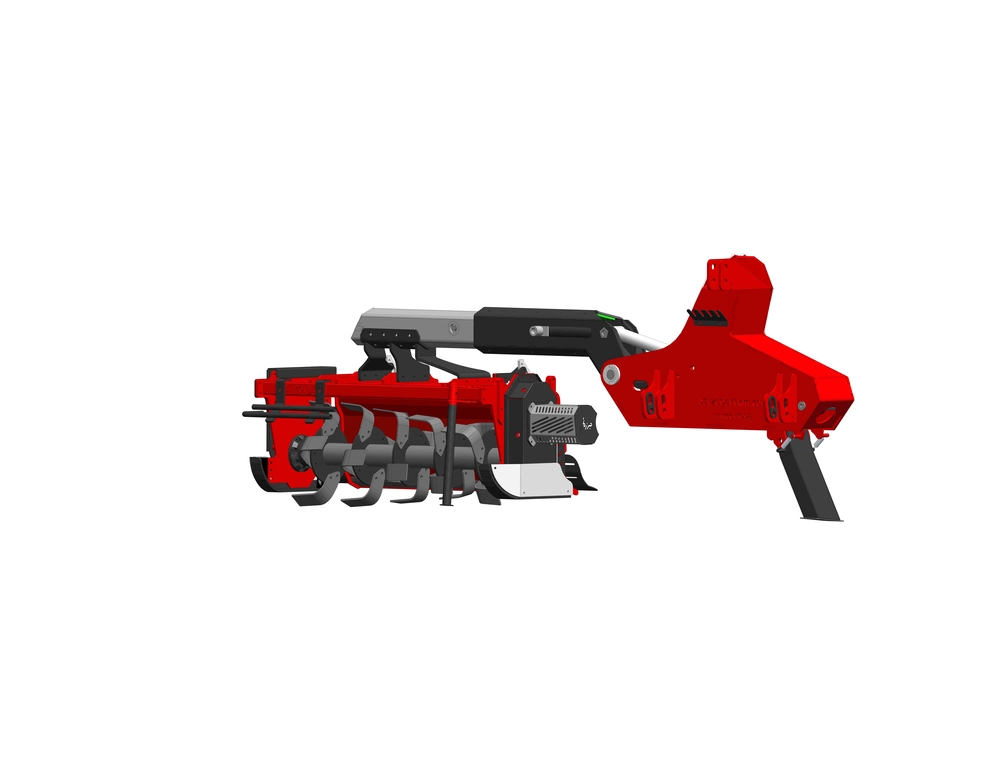

Jointed Side-Arm Rotavator (Under-Tree Tiller)

This machine is used in agricultural mechanization, particularly for primary tillage in orchards. It performs tilling operations close to tree trunks and plants without causing any damage. The arm of this system features a fixed and a hydraulic casing, which uses a hydraulic ram to guide the chassis into the optimal position (near tree trunks), extending it up to 1650 mm along the tractor’s width.

The power transmission system in this machine consists of gears with a reverse rotation, which transfers power from the hydraulic motor to the blade flange for tillage. The specially engineered three-point hitch with specific angles provides a safe support for folding the chassis during transport.

Advantages

• Close Tillage without Damage: The machine can be offset to till close to tree trunks without causing any harm.
• Engineered Three-Point Hitch: Features a separate three-point hitch with engineered angles and balanced weight for stability.
• Independent Chassis: The chassis is independent of the three-point hitch, extending up to 1650mm from the tractor’s width.
• Hydraulic Motor: Equipped with a hydraulic motor to convert hydraulic energy into mechanical energy for the shaft rotation.
• Coupled Gearbox: Includes a 3-to-1 coupled gearbox to reduce speed and increase output torque.
• Two-Gear Power Transmission: The power transmission system features two gears with reverse rotation capability.
• High Durability: Designed with high-quality materials and engineering to ensure a long lifespan.
• Hydraulic Folding: The chassis can be hydraulically folded using a cylinder placed inside the three-point hitch for safe transport.
• Safe Transport: The engineered angles of the three-point hitch provide a stable support for the chassis, ensuring secure transport.
• Safety Lock Arms: Equipped with safety lock arms to prevent the chassis from unfolding during transport in case a hydraulic hose ruptures.
• Independent Oil Tank: Features a separate oil tank for the hydraulic pump, providing pressurized oil to the hydraulic motor.
• Oil Cooling Kit: Comes with an oil cooling kit to regulate the hydraulic fluid temperature.
• Slope Operation: The chassis angle can be adjusted, making the machine flexible and suitable for operation on sloping ground.
