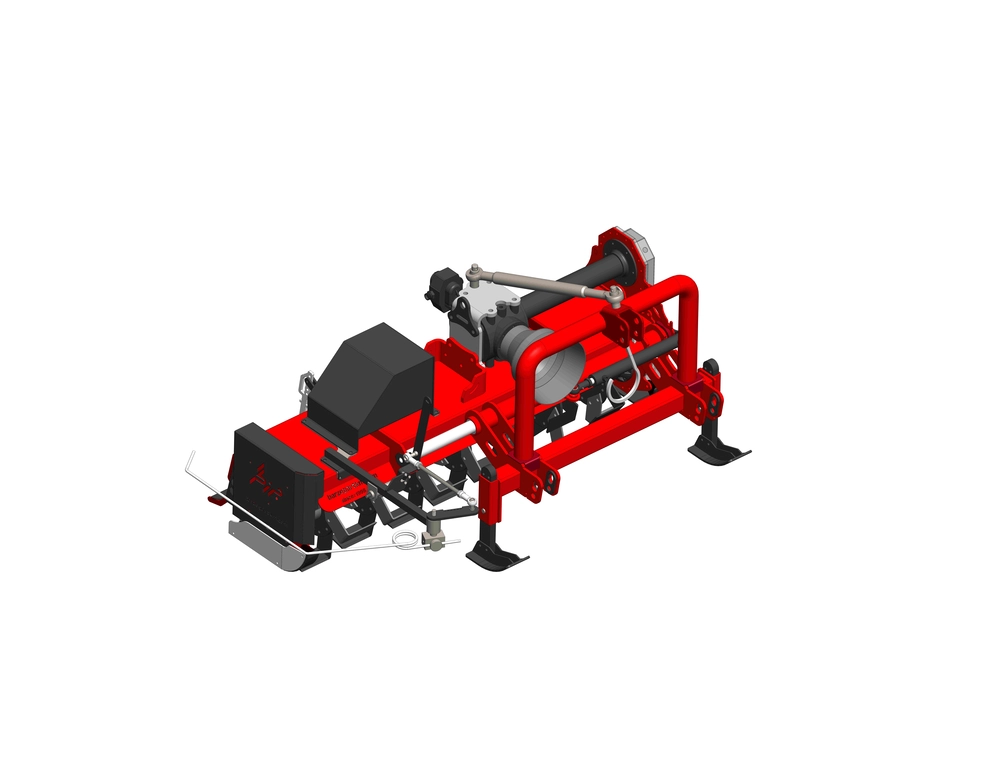

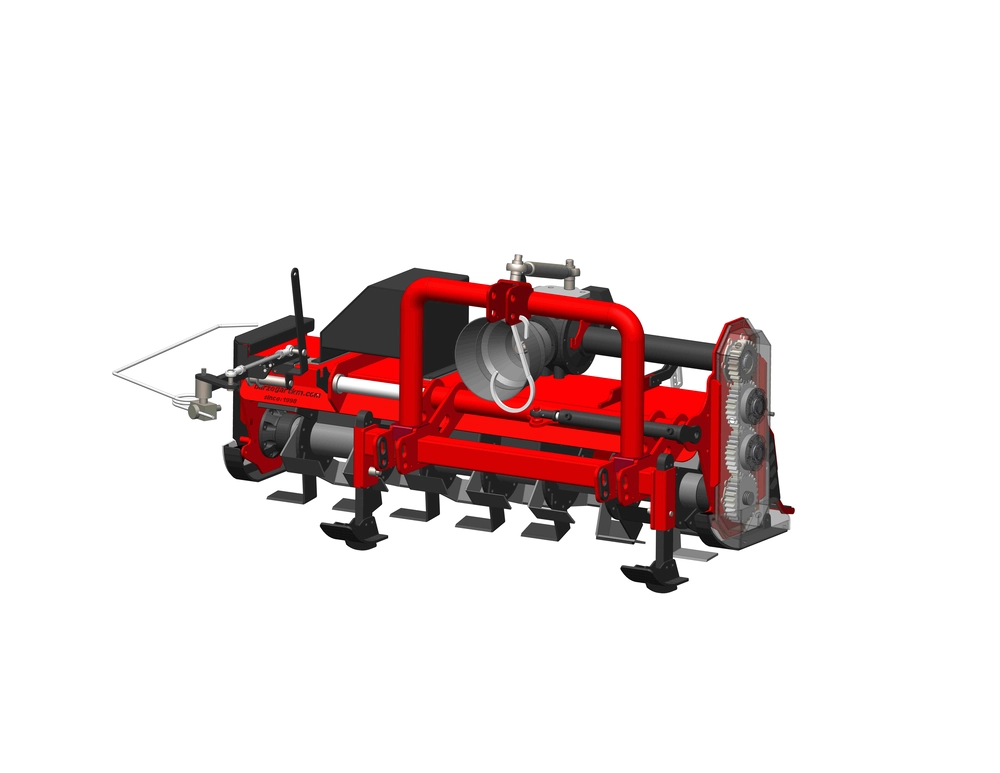

Hydraulic Offset Rotavator (Sensor-Equipped) – Orchard & Agricultural

This machine is used as a primary tillage tool in orchards, greenhouses, and vegetable fields to eliminate weeds. A prominent feature of this rotavator is its sensor system, which continuously monitors working conditions and automatically controls the machine’s hydraulic offset system. By sending commands to the hydraulics, it ensures the machine moves precisely as needed, preventing it from colliding with and damaging tree trunks.

Key Advantages

• Sensor-Equipped: The machine is equipped with a sensor to detect its distance from trees.
• Reduced Operator Error: It lowers the risk of operator error, increasing the precision of agricultural operations.
• Increased Efficiency: Boosts working speed and saves time.
• Close-Proximity Tillage: Allows for tilling operations in the closest proximity to trees.
• Versatile Application: Ideal for fields with obstacles, row orchards, and high-precision cultivation.
• Hydraulic Offset: Features a hydraulic ram for easy side-shifting (offsetting).
• Spring-Loaded Rear Door: The rear door is equipped with a spring for effective soil leveling. On heavy-duty rotavators, this function is hydraulic.
• Durable Plates: Has 12mm plates to prevent premature blade wear.
• Strong Gear System: Features 30-35mm wide gears for machine durability.
• High-Strength Axle: Equipped with a single-piece, high-alloy axle with a diameter of 90-120mm.
• Enhanced Durability: Uses double-row spherical bearings on both sides of the machine, providing flexibility against flange impacts.
• Maintenance-Free Hubs: Equipped with side hubs filled with gear oil, eliminating the need for greasing.
• Clutch-Equipped PTO Shaft: Comes with a clutch-type PTO shaft.
• Clod Crushing Capability: Due to its heavy build, the machine can crush clods for secondary tillage.
• Movable Three-Point Hitch: Features a movable three-point hitch made of pipes and box sections.
• Fixed Gearbox: A unique feature is its fixed gearbox, which prevents high wear and tear.
• Unique Flange Design: The unique flange design features interlocking blades spaced just 5cm apart to prevent unturned soil sections.
• Depth Control: Includes skids (depth shoes) at the front and sides for precise depth adjustment.
• Toolbox: Comes equipped with a toolbox.
• PTO Shaft Guard: Has a protector and holder for the PTO shaft.
• High-Quality Materials: Made with ST52 steel and engineered bending to increase strength and service life.
• Optimized Blade Configuration: Each flange plate has 6 blades with a standard spacing to prevent unturned soil, ensuring optimal blade life and a productive working width.
• Sealed Sump: The gearbox has a sealed sump to keep gears in oil, provide support for the central idler gear pins, and prevent the entry of water and dust.
