Description

Hydraulic Offset Rotavator (Orchard & Agricultural)

(Suitable for orchard and agricultural tractors with 30 to 75 horsepower)

Application

This machine is used as a primary tillage tool in orchards, greenhouses, and vegetable fields to eliminate weeds.

Key Advantages of the Machine

1. Hydraulic Offset: Equipped with a hydraulic ram for easy side-shifting (offsetting).
2. Spring-Loaded Rear Door: The rear door is fitted with springs for effective soil leveling. On heavy-duty rotavators, this function is hydraulically operated.

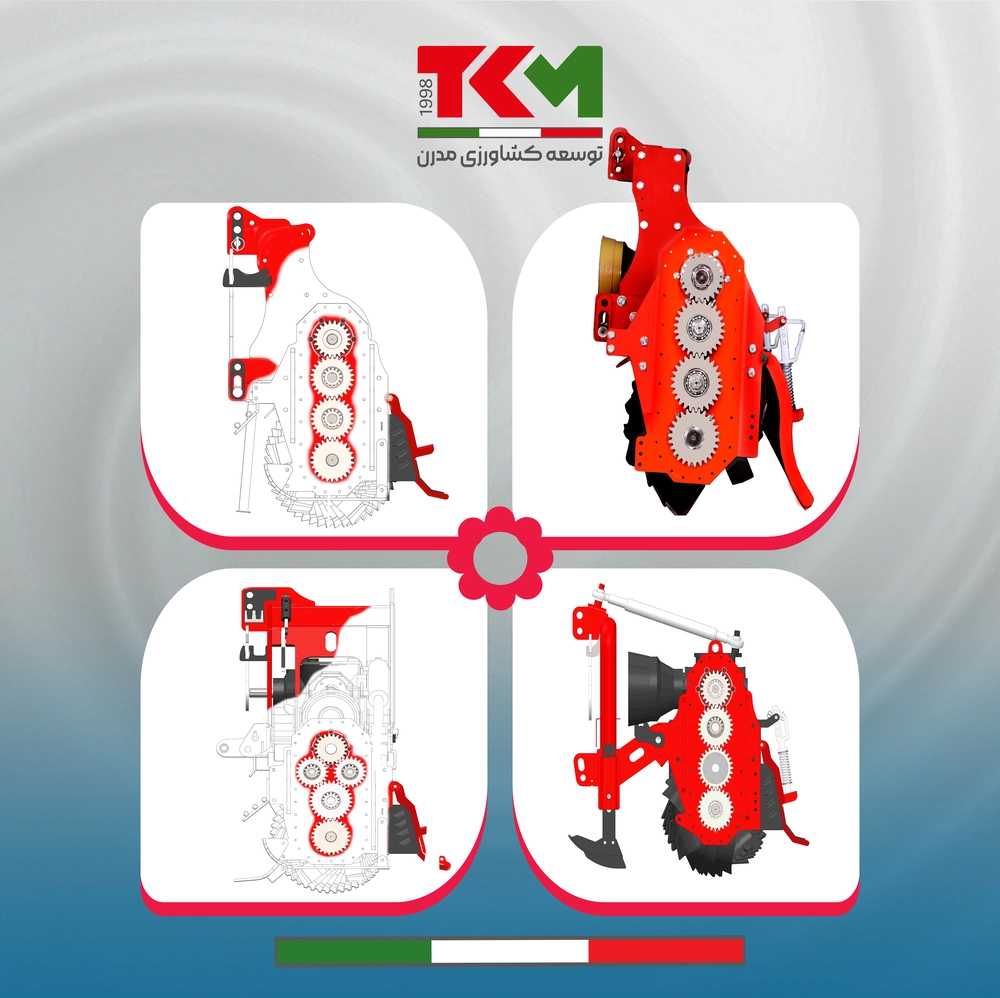

3. Durable Power Transmission: Features a gear-driven power transmission system with 30-35mm wide gears for enhanced durability.
4. High-Strength Axle: Features a single-piece, high-alloy axle with a diameter of 90-120mm.
5. Enhanced Durability: Uses double-row spherical bearings on both sides of the machine, providing flexibility and resistance against flange impacts.
6. Maintenance-Free Bearings: Equipped with side hubs filled with gear oil, which eliminates the need for greasing.
7. Clutch-Equipped PTO Shaft: Comes with a clutch-type PTO shaft to protect both the machine and the tractor.
8. Fixed Gearbox: A unique feature of this machine is its fixed gearbox, designed to prevent high wear and tear.
9. Optimized Tillage: The unique flange design features blades that are spaced just 5cm apart, interlocking to prevent any unturned soil.
10. Adjustable Depth: Equipped with skids (depth shoes) at the front and sides of the machine for precise depth control.
11. PTO Shaft Protector: Includes a protector and holder for the PTO shaft.
12. Efficient Blade Design: Each flange plate has six blades with a standard distance between plates to prevent unturned soil, ensuring optimal blade life and a productive working width.
13. Sealed Gearbox: Features a sealed sump to keep gears immersed in oil, provide a stable support for the central idler gears, and prevent the entry of water and dust.
14. Optional Sensor System: A sensor system can be installed on all machines upon customer request.
15. Improved Efficiency: Installing the sensor allows the machine to detect its distance from trees, increasing working speed and saving time.
