Description

Key Features

1. Uniform Application: The sprayer provides uniform spraying due to consistent droplet size, eliminating human error.
2. Reduced Chemical Usage: Decreases chemical consumption by up to 50% compared to standard spray lances, which prevents runoff and protects the environment.
3. Increased Efficiency: Boosts the speed of the spraying operation by up to 7 times, which also reduces labor costs.
4. Adjustable Spray Volume: Allows for precise adjustment of the spray volume based on specific needs.

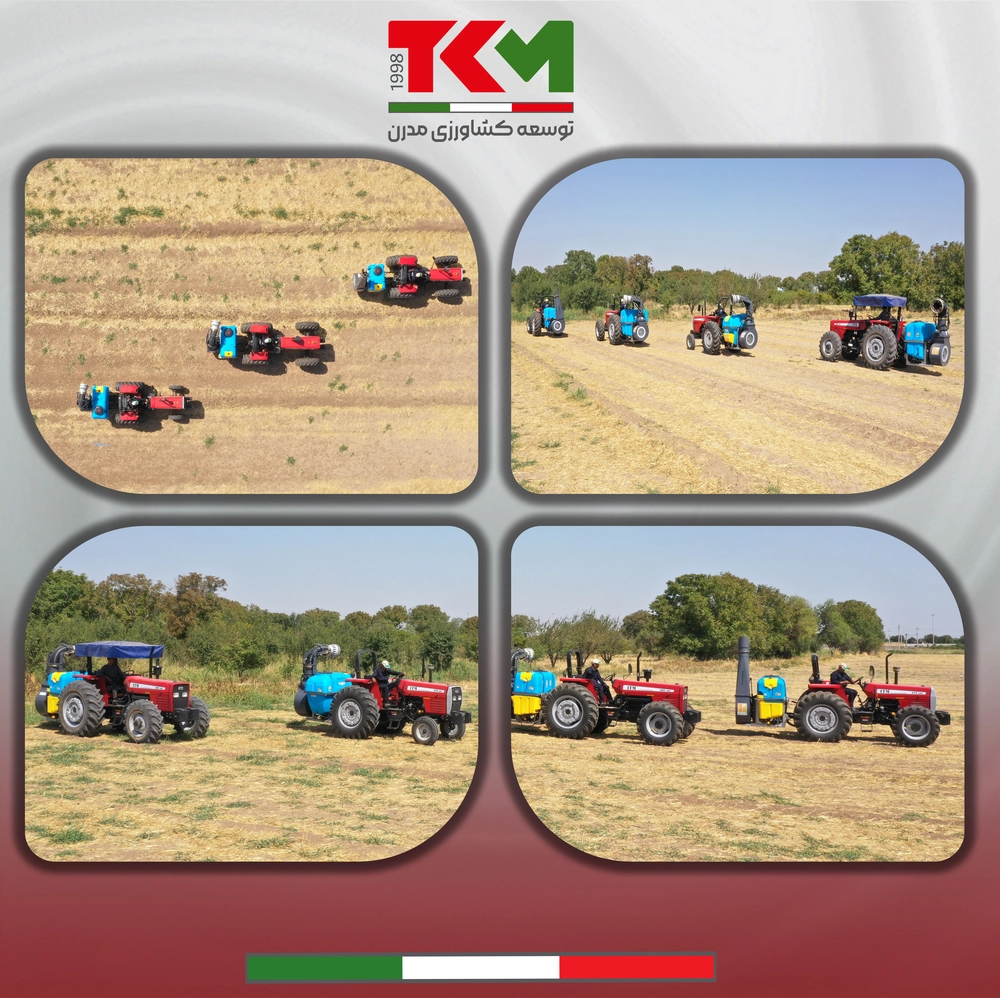

5. Mounting Options:
   • Mounted (Trailer-Type): Available in 400, 600, 800, and 1000-liter capacities.

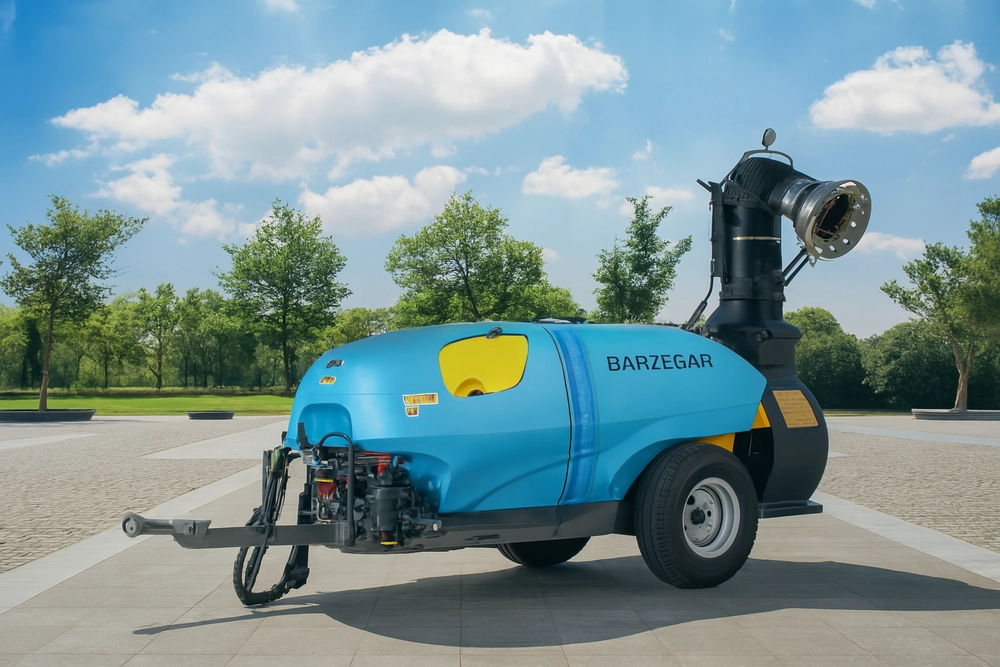

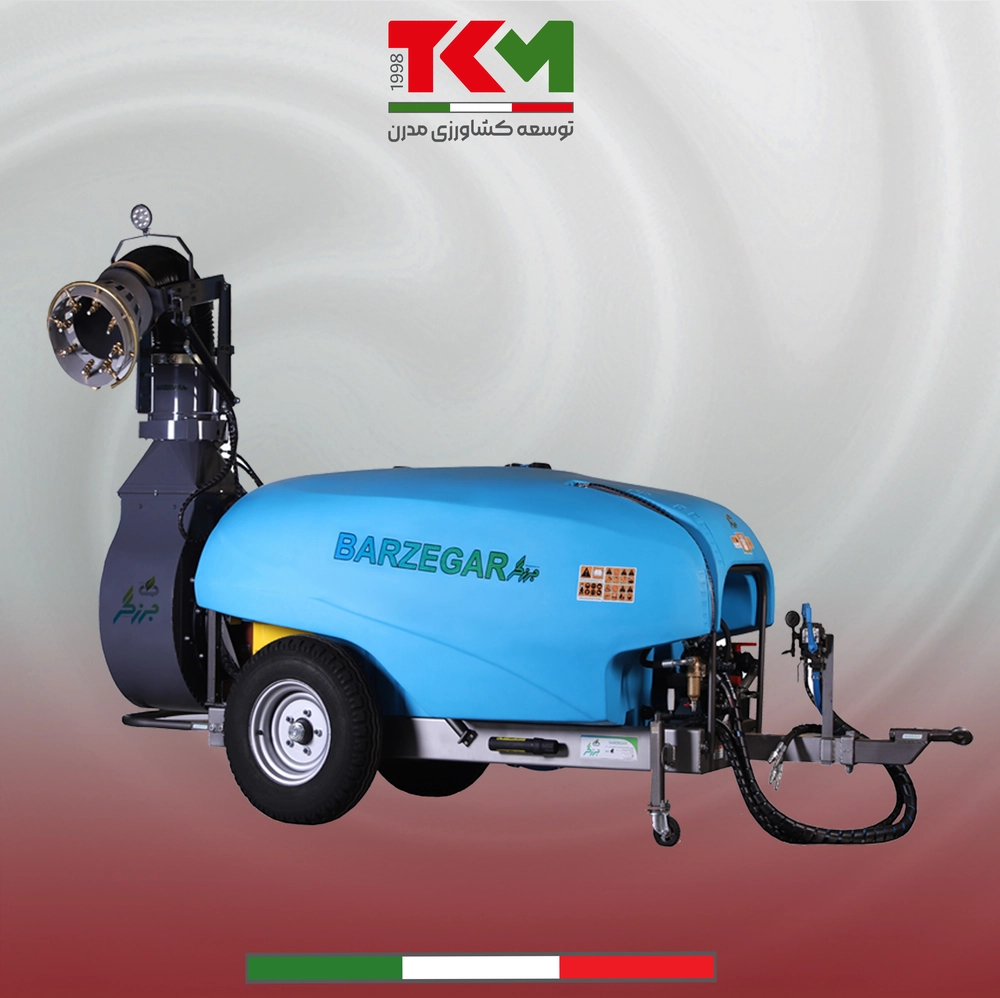

   • Trailer (Wheeled-Type): Available in 1000, 2000, and 3000-liter capacities.

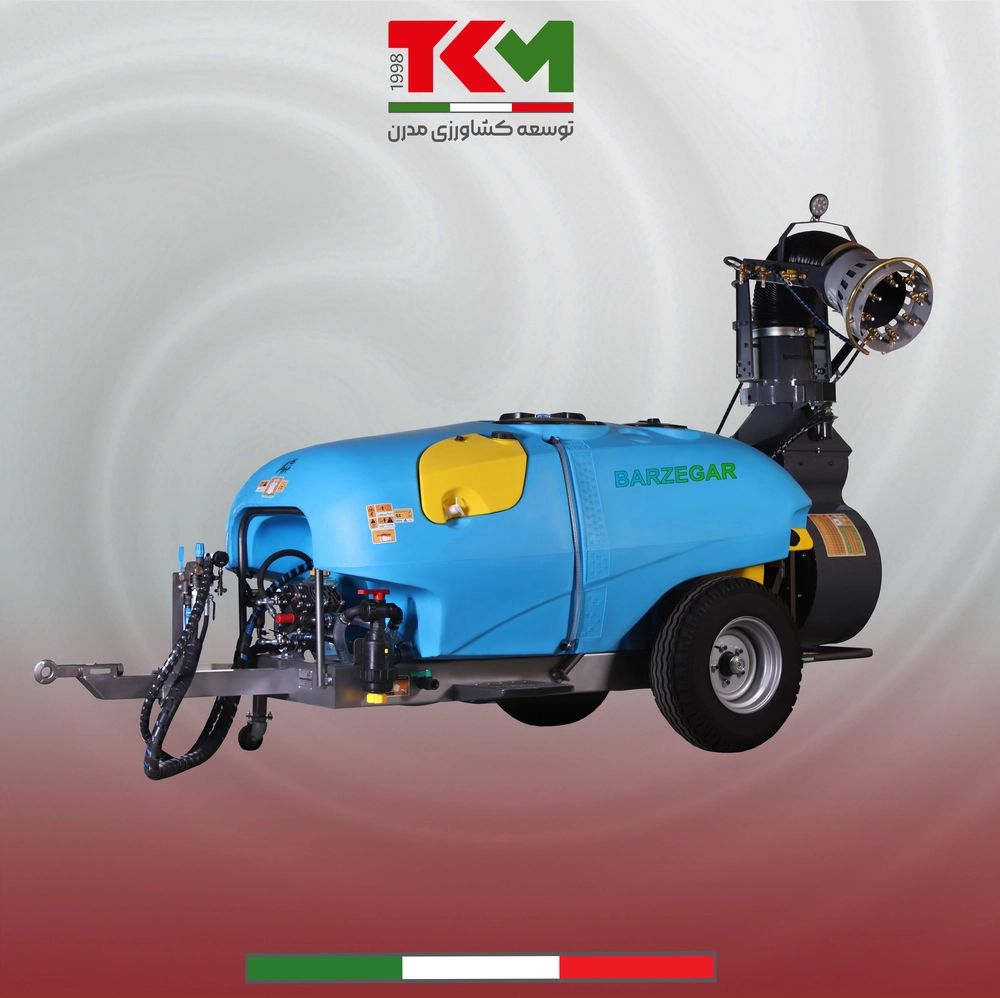

6. Durable Tank: Features a three-part polyethylene tank that is resistant to direct sunlight, chemicals, and various pesticides. It includes a main tank, a hand-wash tank, and a circuit-washing tank.
7. Self-Filling System: Equipped with a suction-based tank filler to prevent direct contact between the chemical tank and water sources.
8. Anti-Drip Nozzles: Features double, brass, anti-drip nozzles to prevent chemical waste.
9. Durable Hoses: Uses 90-bar hoses for enhanced durability and longevity.
10. Hydraulic Mixer: A hydraulic mixer ensures the solution is consistently uniform during spraying, preventing chemicals from settling.
11. Articulated PTO Shaft: An articulated PTO shaft is used to transfer power from the tractor’s PTO to the pump, which increases maneuverability and reduces wear.
12. Powder-Solubility Filter: The tank lid has a built-in filter to help dissolve powdered pesticides.

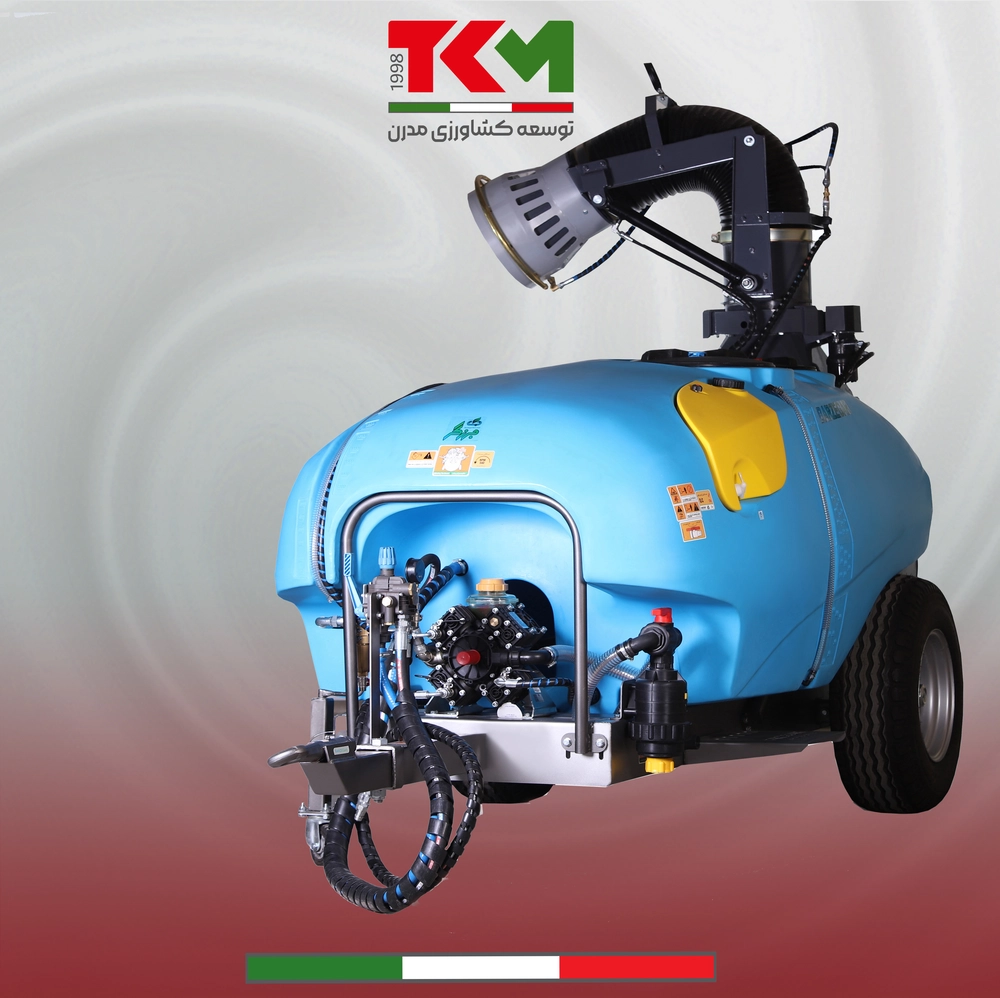

13. Multi-Stage Filtration: The system includes a plastic filter for large debris, a brass-silicon filter for medium particles, and a final valved brass filter to prevent sand from clogging the nozzles.
14. Heavy-Duty Hitch: The machine is equipped with a 10-ton steel hitch to increase the chassis’s resistance.
15. Wide Wheels: Features wide rims and tires for easy operation on slopes and uneven terrain.
16. Adjustable Axle & Hitch: The axle (width and height) and hitch (length) are adjustable on trailer-type sprayers.
17. Strong Chassis: The chassis has a U-shaped profile and an industrial box section, with a bottom plate to prevent the sprayer from hitting the ground.
18. Reinforced Wheel Axle: The wheel axle is an industrial box section reinforced with 8mm thick plates.
19. Dual Tank Lids: The tank has two lids for simultaneously adding water and chemicals.

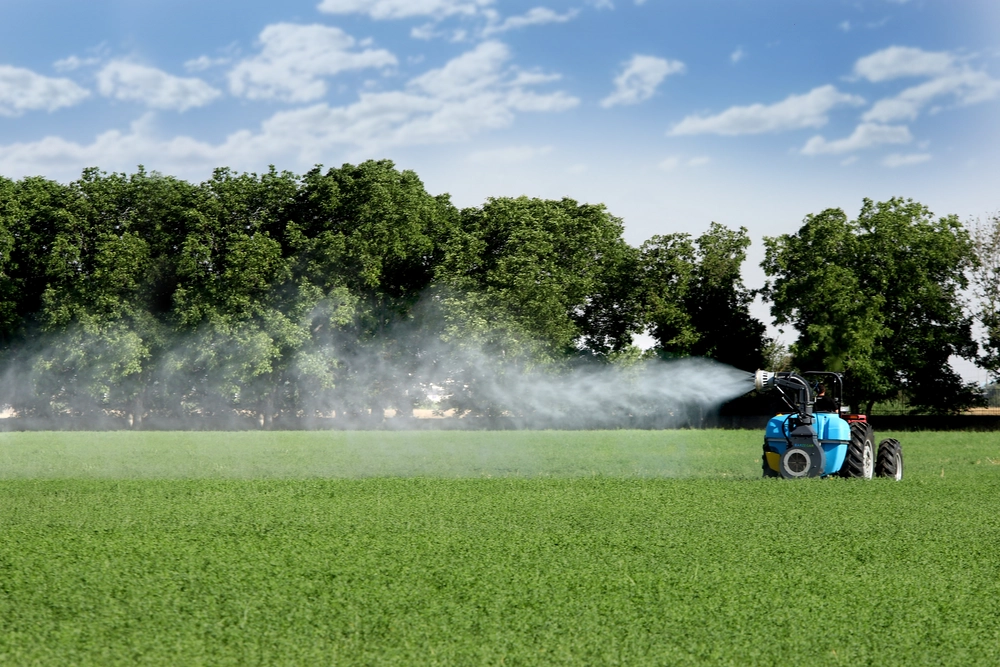

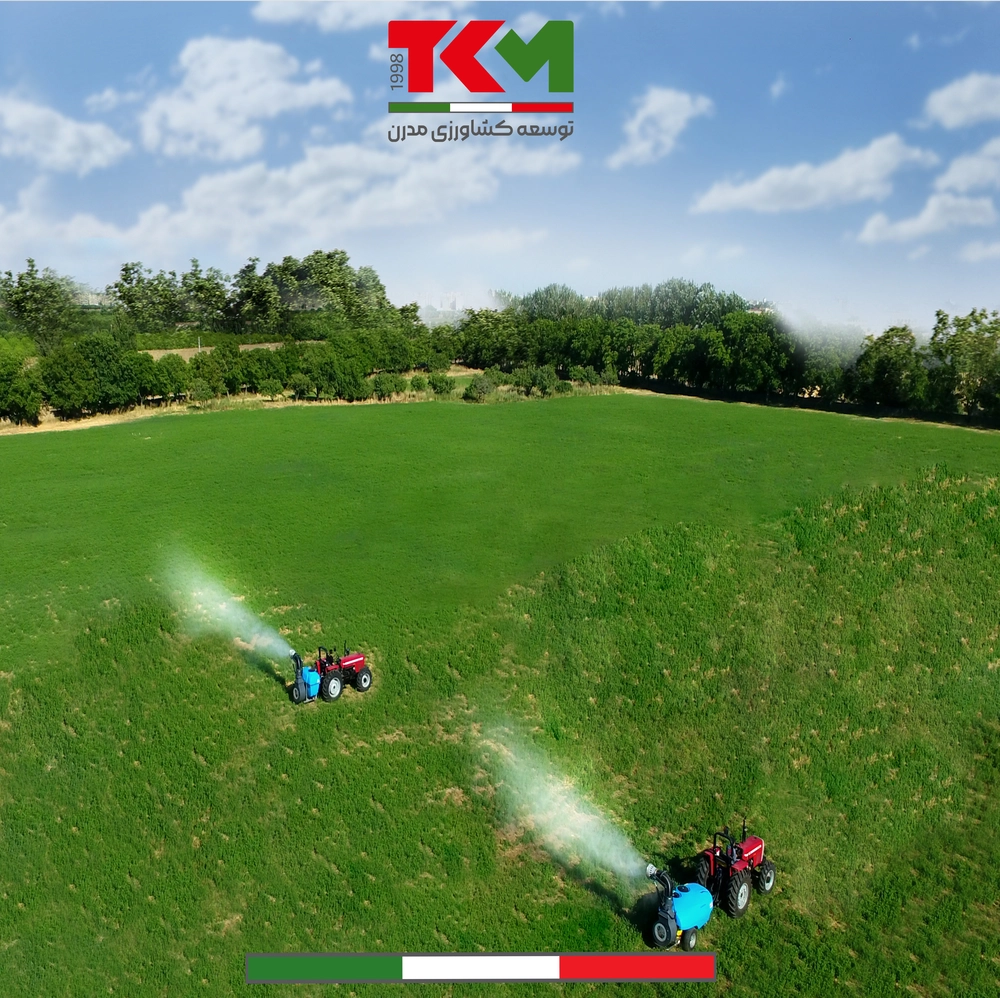

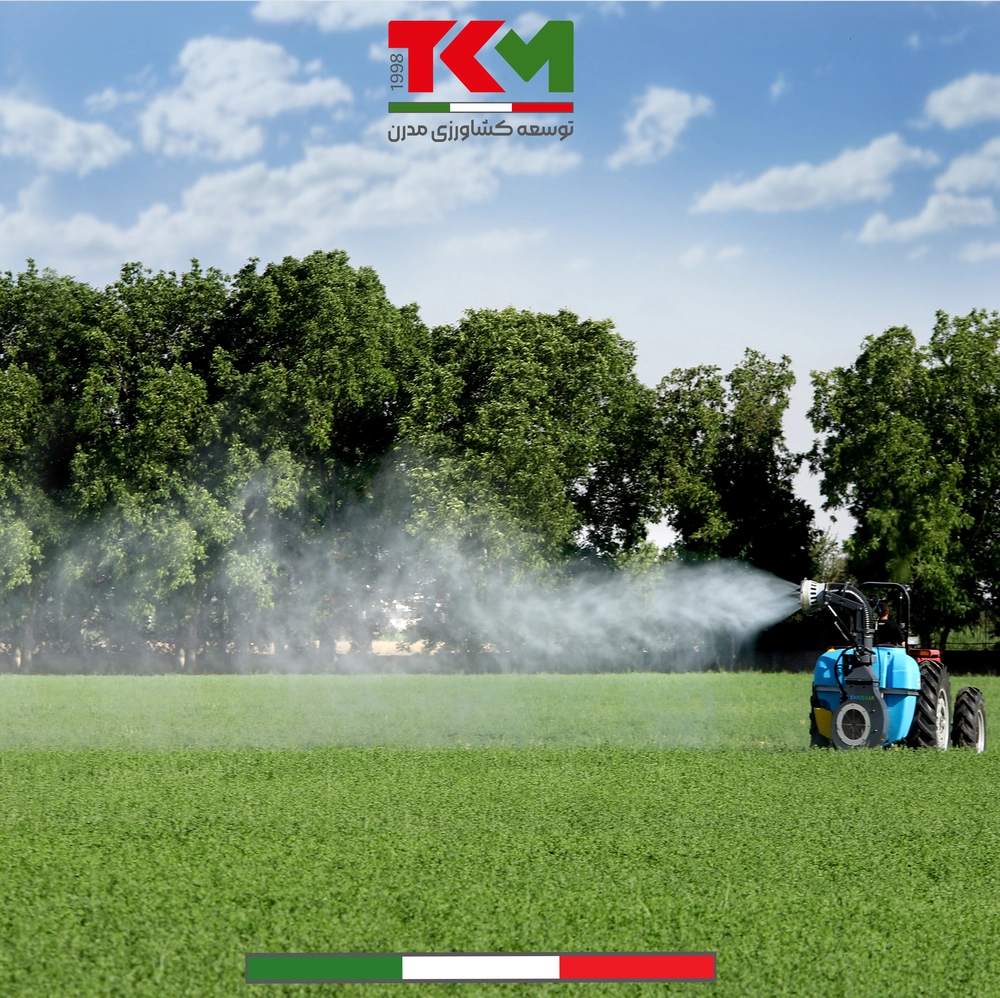

20. High Performance: Provides high-speed and high-efficiency operation, with a spray length of 35 to 50 meters.

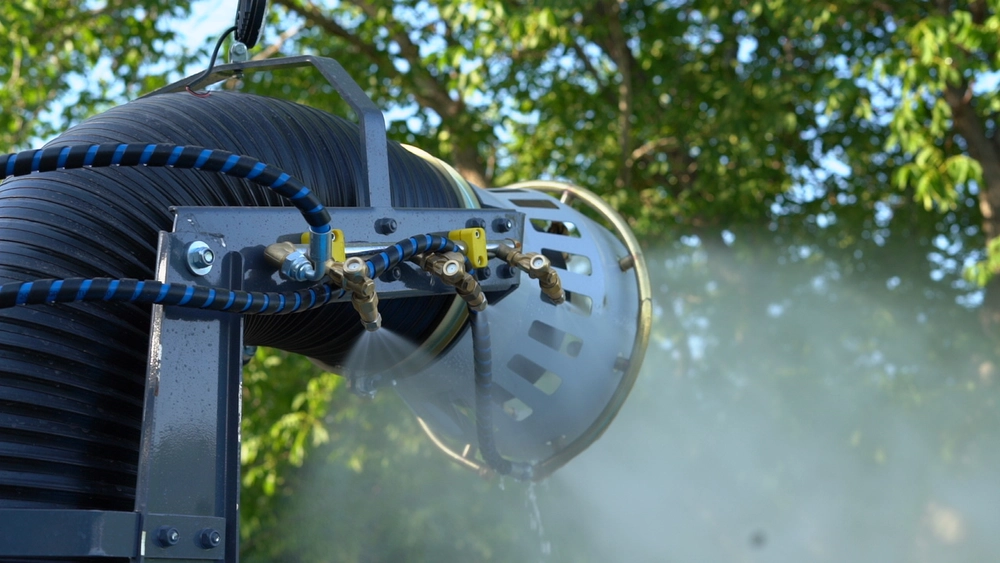

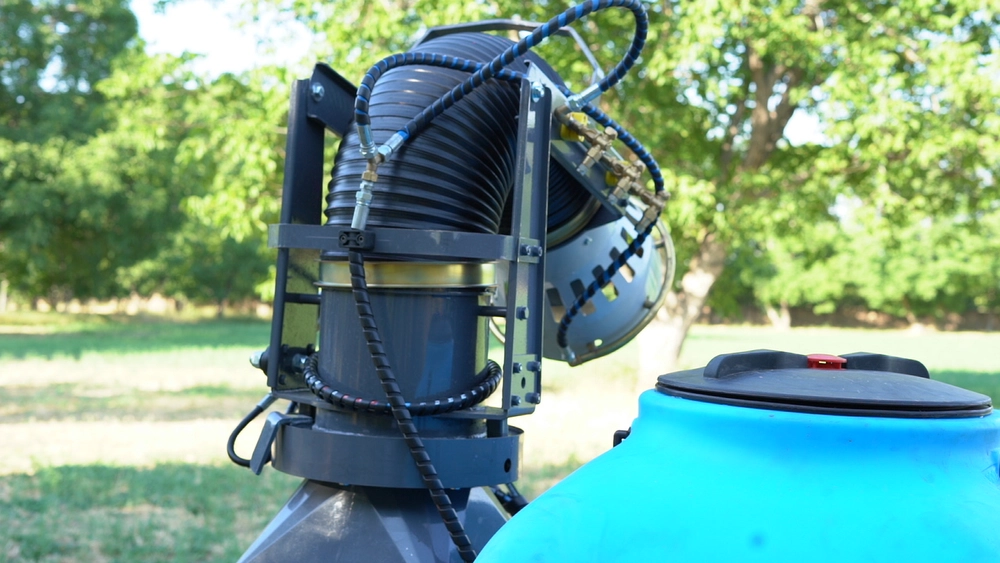

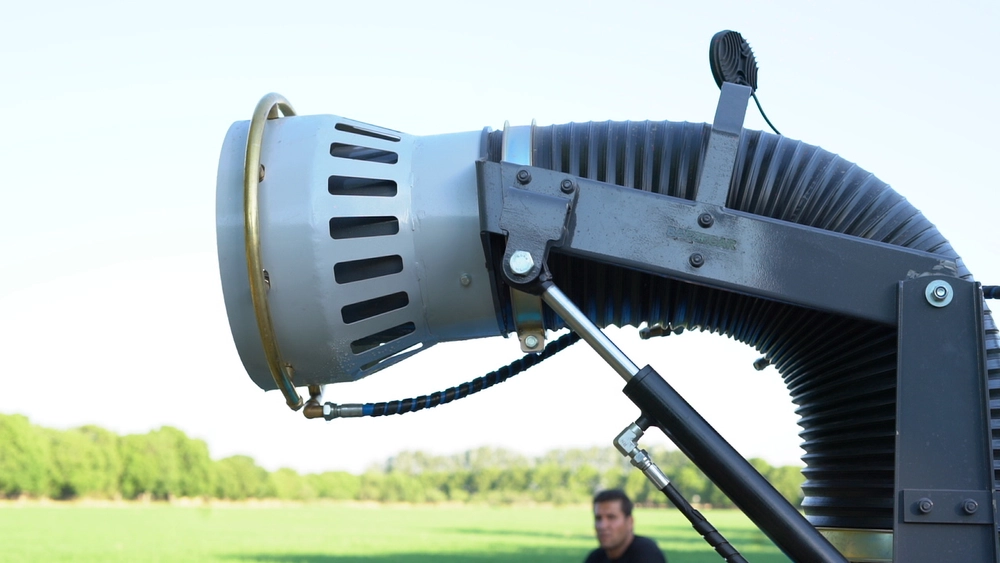

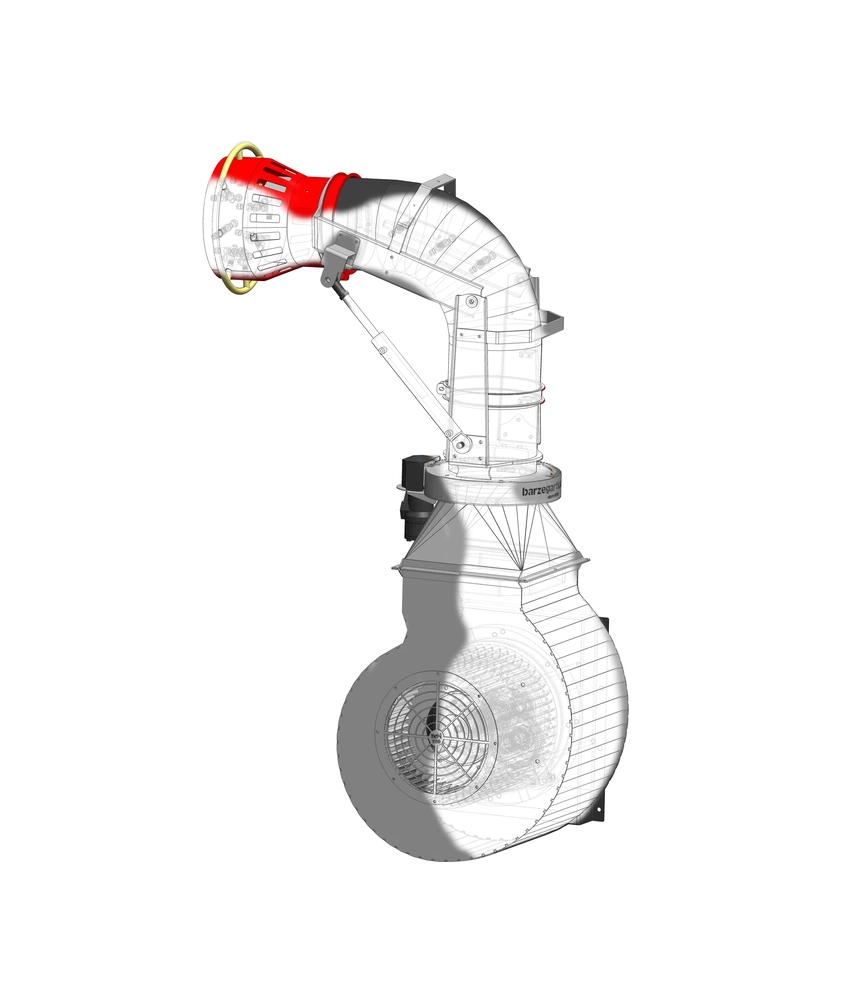

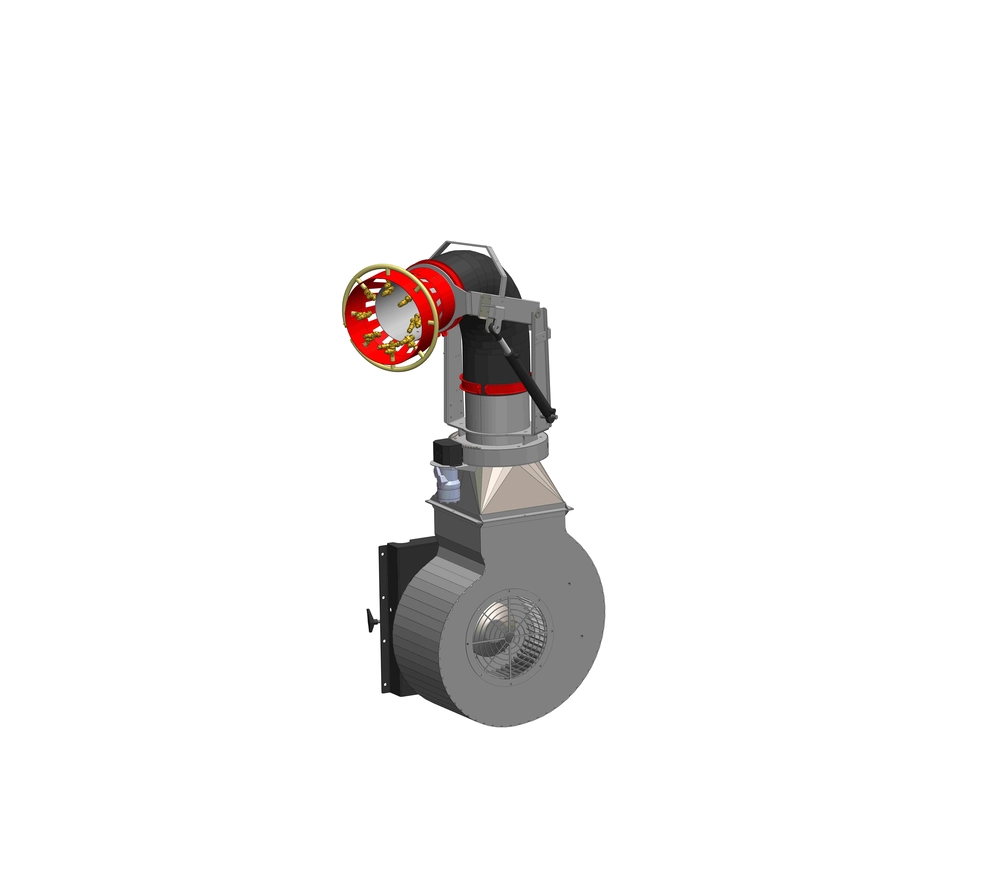

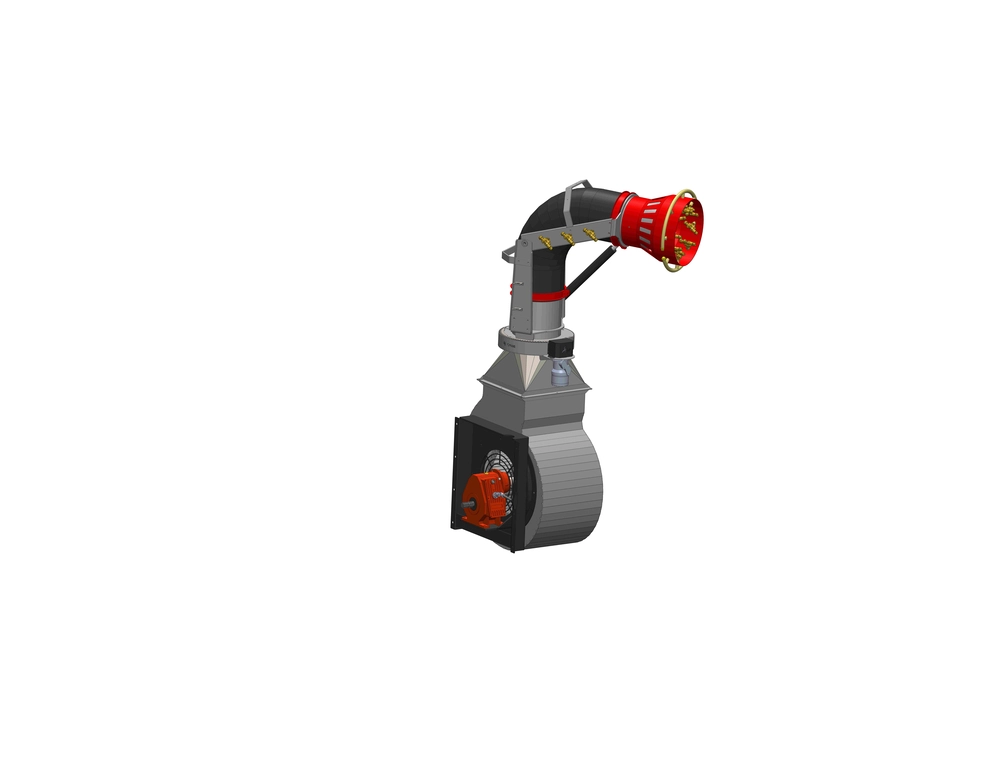

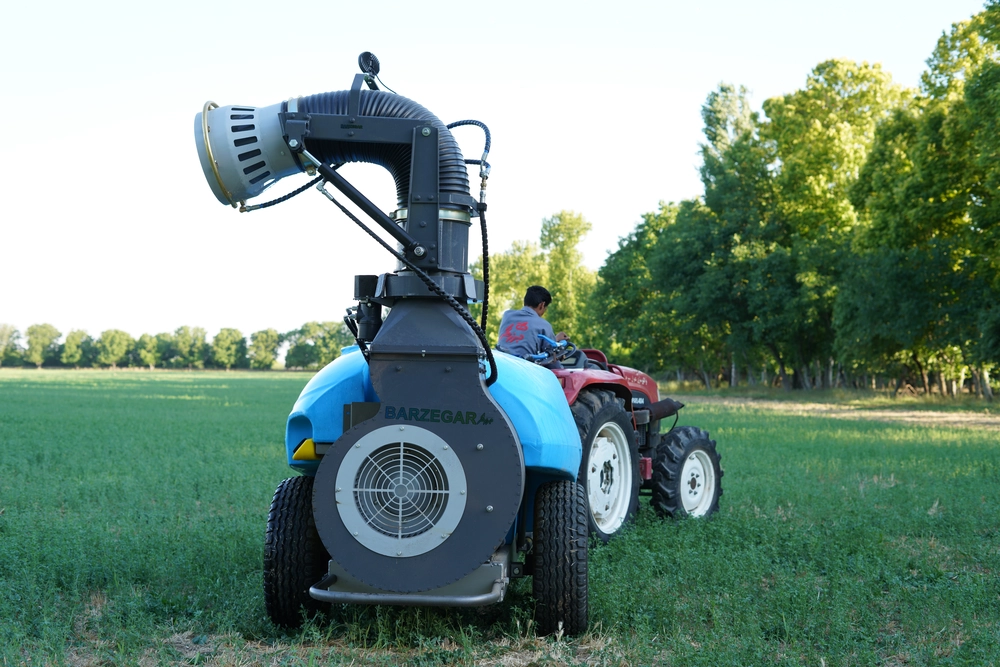

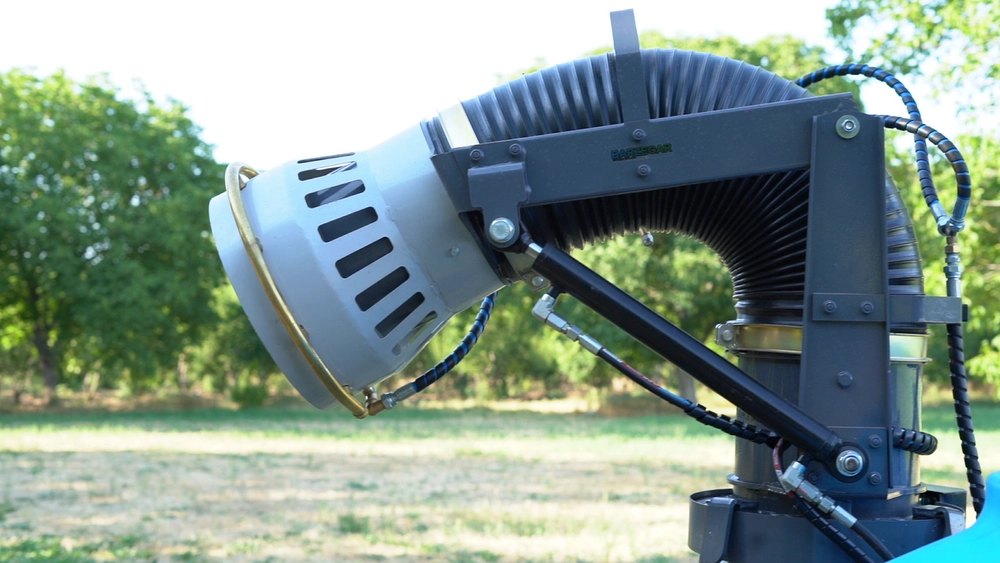

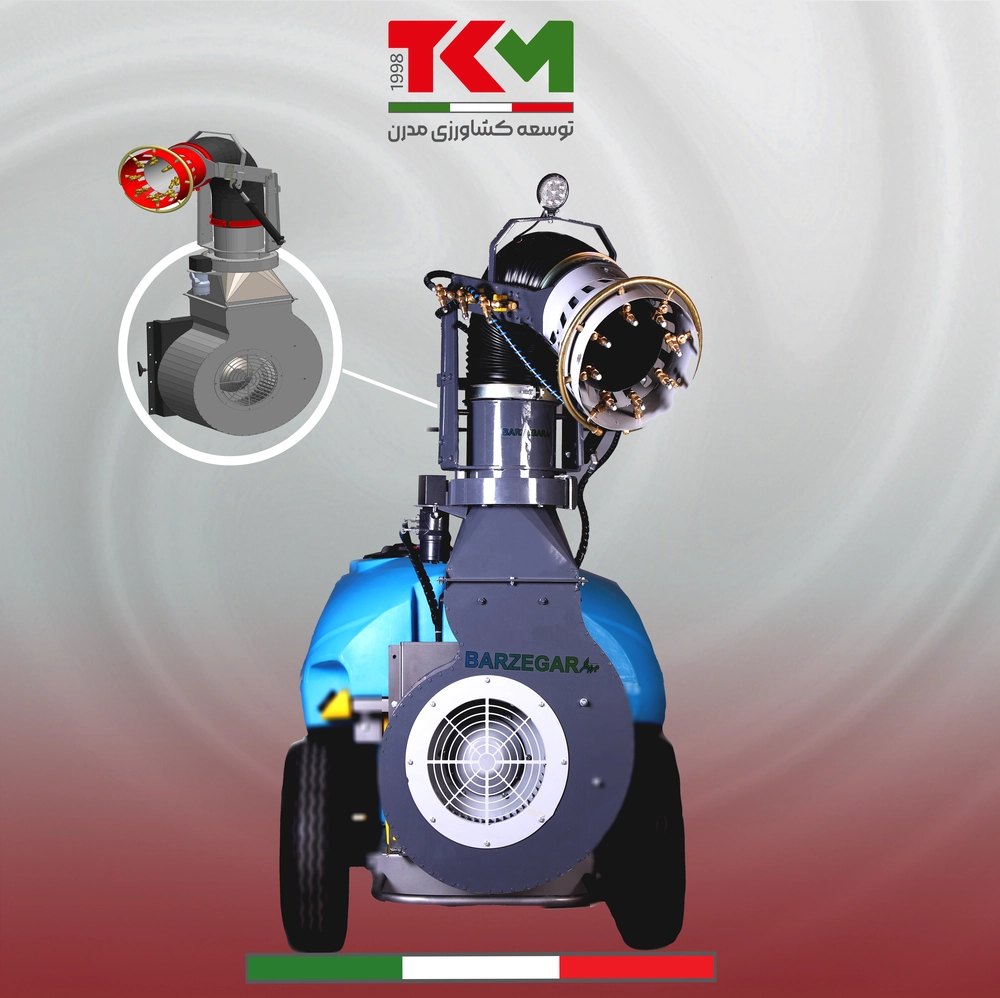

21. Centrifugal Fan: The centrifugal fan with a flexible hose features a hydraulic motor for horizontal rotation and a hydraulic jack for vertical rotation. It also has a two-speed gearbox with a central clutch to enhance performance and extend the lifespan of the fan and gearbox.
22. Unique Fan Design: The fan’s design ensures full spray coverage. In addition to the main fan pipe, a nozzle is also installed next to it for extra coverage.
23. Toolbox: Comes with a built-in toolbox.
24. LED Lights: Equipped with LED lights for nighttime spraying and safe travel on roads.
25. Durable Nozzle System: The nozzles are connected by a copper pipe, which increases durability and performance.
26. Corrosion-Resistant Pipes: The nozzle pipes are made of 316 stainless steel to resist corrosion and temperature changes
