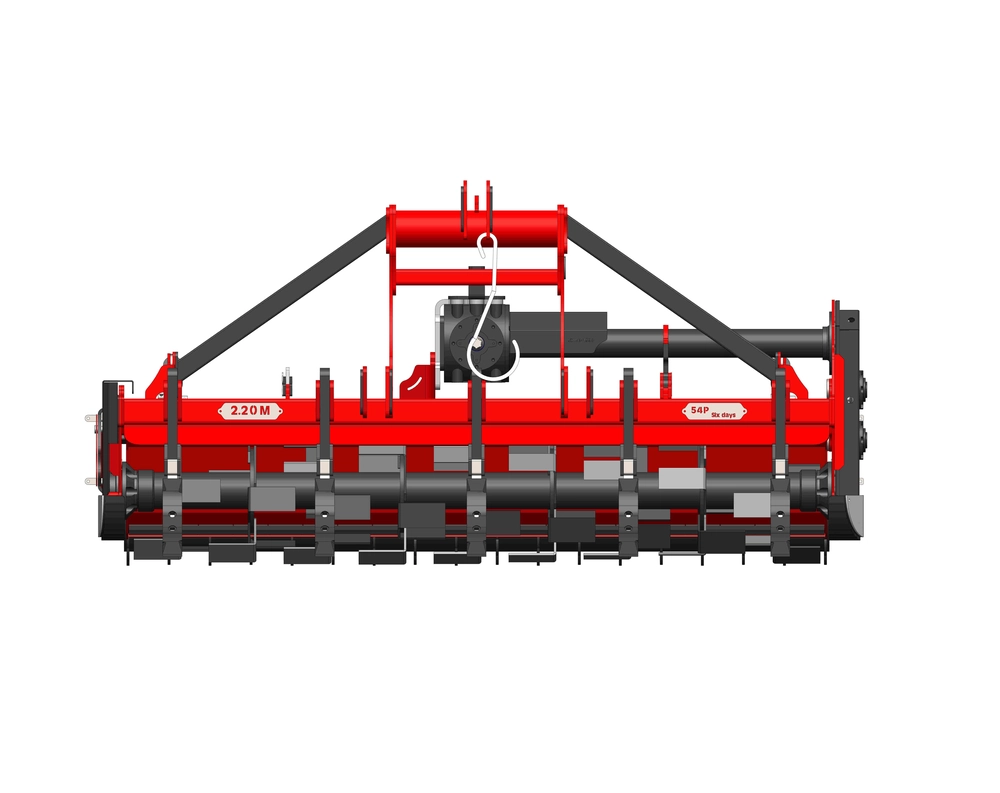

Description

(Suitable for medium-duty tractors with 75 to 110 horsepower)

Application

This machine is used in large fields and farmlands for subsoiling, clod crushing, and soil leveling. It serves as an effective replacement for a disc plow during both primary and secondary tillage operations

Key Advantages of the Machine

• Deeper Tillage: With its superior tilling depth, it is an ideal replacement for the disc plow.
• Durable Plates: Features 12mm plates to prevent premature blade wear.
• Optimized Tillage Efficiency: Equipped with six blades on each flange plate and standard spacing between plates to prevent unturned soil, ensuring optimal blade life and a productive working width.
• Robust Power Transmission: Features a strong gear-driven power transmission with 35mm wide gears on one side for maximum strength.
• Clutch-Equipped PTO Shaft: Comes with a clutch-type PTO shaft to protect the machine and tractor from shock loads.
• Fixed Three-Point Hitch: The machine is equipped with a fixed, bolt-on three-point hitch.
• Fixed Gearbox: Its unique design includes a fixed gearbox to prevent high wear and tear.
• High-Quality Materials: Built with high-quality materials, including ST52 steel and high-carbon steel in critical areas, ensuring a durable and long-lasting machine.
• Enhanced Durability: Uses double-row spherical bearings on both sides, providing flexibility and resistance against flange impacts.
• Automated Leveling: The rear door is equipped with springs for effective soil leveling. On heavy-duty rotavators, this function is managed hydraulically.
• High-Strength Axle: Features a 120mm diameter, high-alloy, single-piece axle for superior strength.
• Versatile Hitching: Designed with two hitch points for link arms, making it compatible with both heavy and light tractors.
• Durable Gears: Has 35mm wide gears for added strength and reliability.
• Optional Ridger System: A ridger system can be added behind the blades upon request.
• Unique Flange Design: Features a unique flange design with blades spaced just 5cm apart, interlocking to prevent any unturned soil.

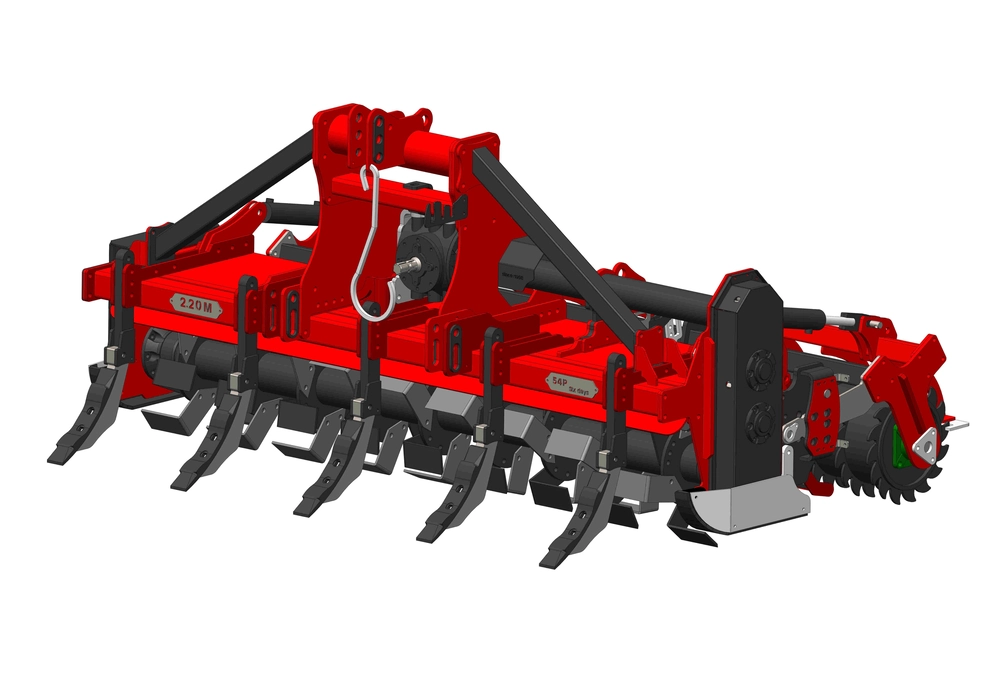

• Integrated Chisel Plow: Equipped with a chisel (subsoiler) to break up hardpan soil layers.
• Hydraulic Roller: Can be equipped with a roller and hydraulic cylinders to compact the ground.
• Adjustable Compaction: The roller’s compaction force can be adjusted using side arms and hydraulic cylinders.
• PTO Shaft Protection: Includes a protector and holder for the PTO shaft.
• Side Dust Guards: Features dust guards on both sides to prevent rocks and clods from scattering.
