Description

(Suitable for heavy-duty and medium-duty tractors with 110 to 150 horsepower)

Application

This machine is used in large fields and farmlands for clod crushing and furrowing operations.

It has a structure similar to the folding rotavator but is also equipped with a furrowing system. This system can be customized based on the crop and field conditions, which increases the machine’s efficiency, precision, and adaptability for different types of cultivation.

Key Advantages of the Machine

• Optimal Working Width: To ensure a productive working width, the machine is equipped with six blades on each flange plate.
• Effective Alternative to Disc Plow: With its deep tilling capability, it’s an excellent replacement for a disc plow.
• Durable Plates: Features 12mm plates to prevent premature blade wear.

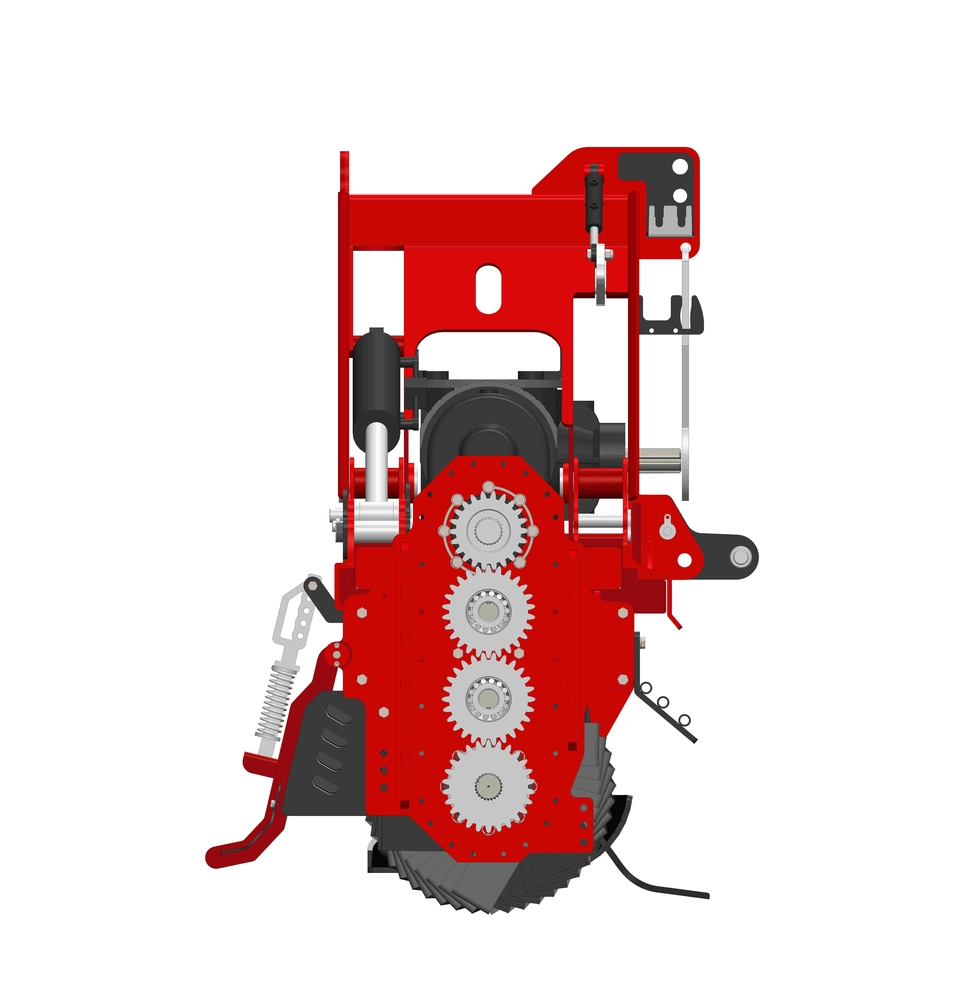

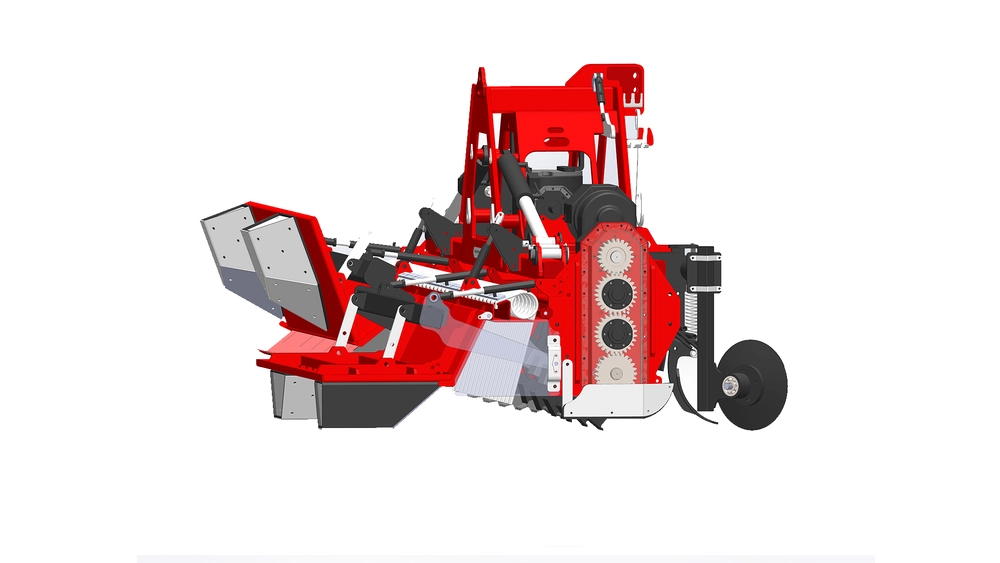

• Robust Gear-Driven System: The power transmission mechanism is gear-driven on both sides for enhanced strength.
• Maintenance-Free Hubs: The central hubs are oil-filled, which eliminates the need for regular greasing.
• Increased Power: For rotavators larger than three meters, two side gearboxes are included to increase power.

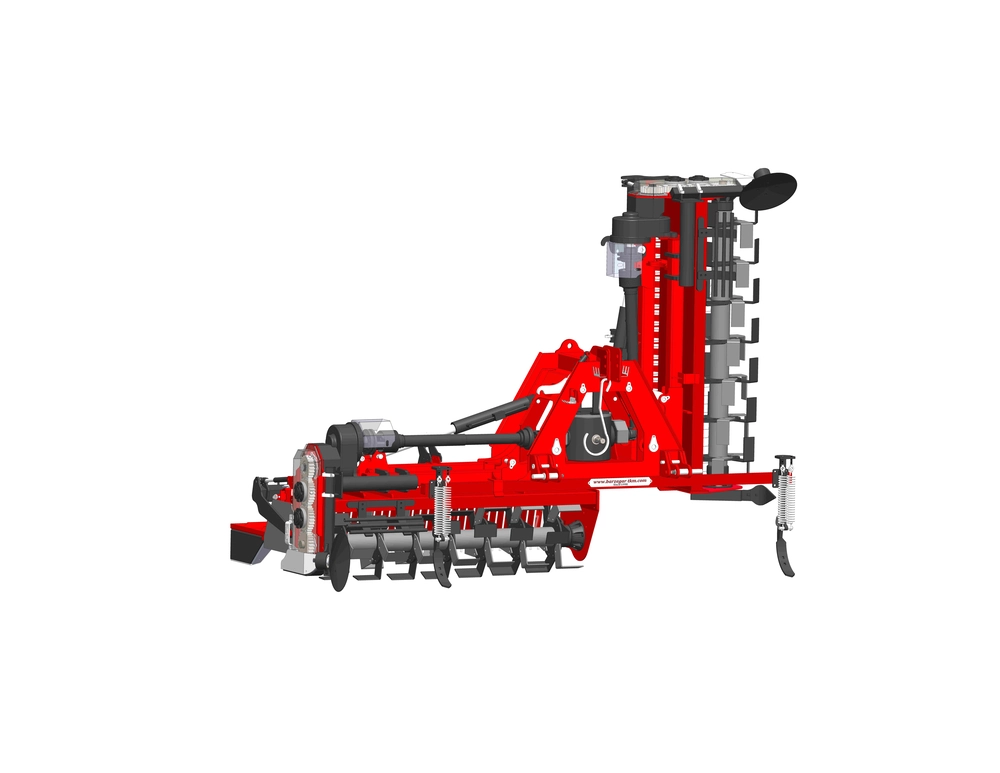

• Hydraulic Folding: The machine can be hydraulically folded for easy transport.
• Traffic Safety: Equipped with traffic lights and reflectors for safety when folded.

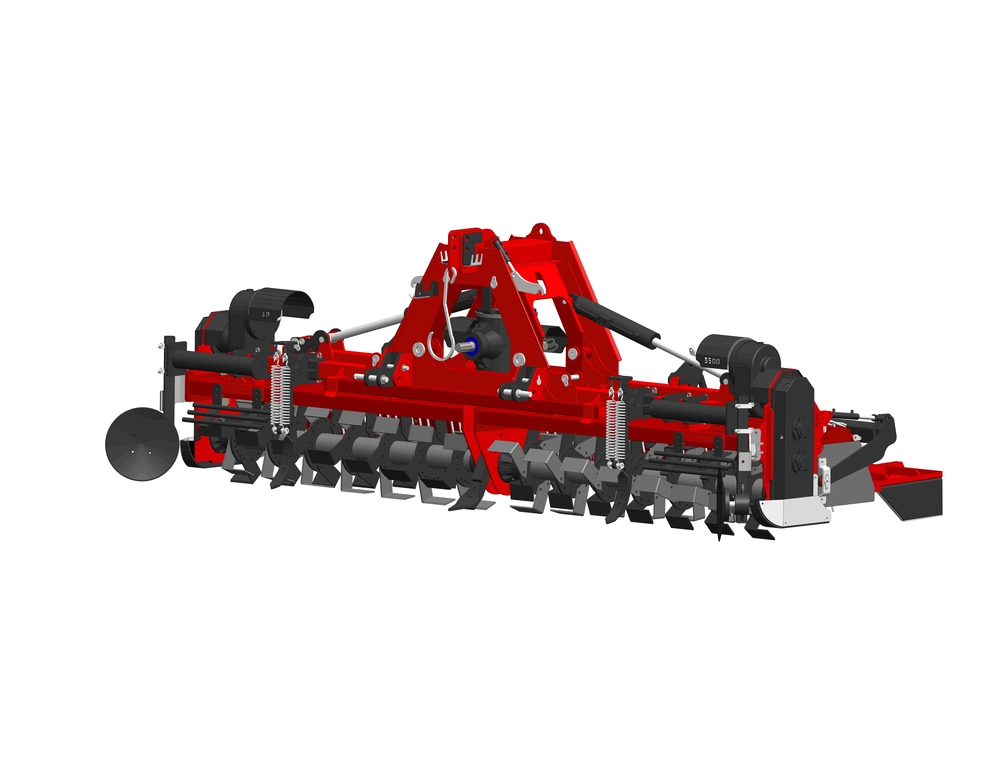

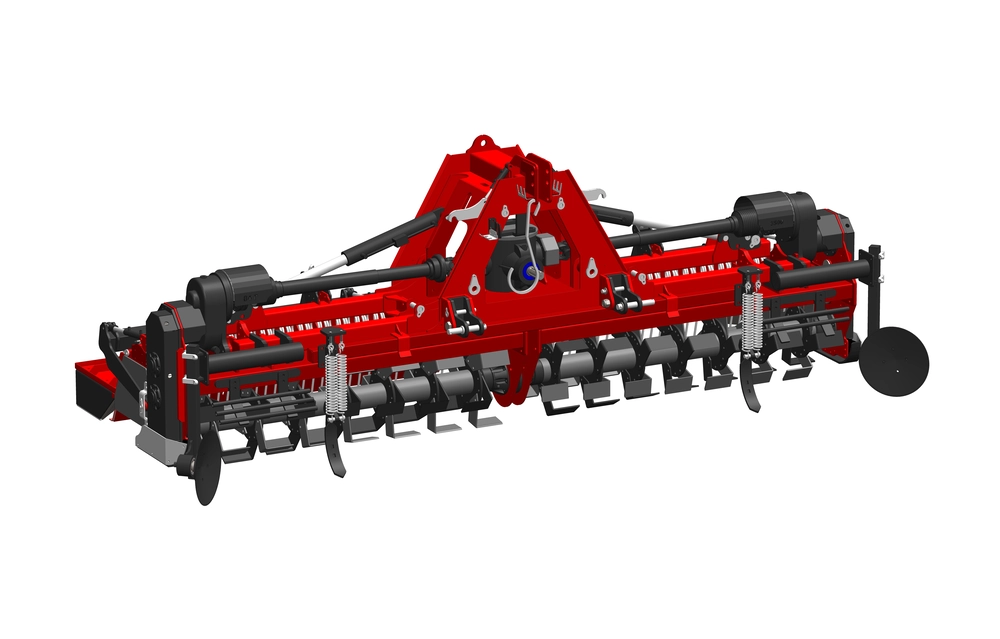

• Integrated Structure: The machine’s structure consists of a single central three-point hitch and two rotavator units on the sides.
• Dual Gearbox System: For rotavators over three meters, it’s equipped with two side gearboxes and one three-way, two-speed gearbox.
• High-Quality Materials: Made with high-quality materials, including ST52 steel and high-carbon steel in critical areas.
• Enhanced Durability: Uses double-row spherical bearings on all four sides for flexibility and resistance to flange impacts.
• Dual Clutch-Equipped PTO Shafts: Features two clutch-type PTO shafts on both sides to transfer power from the gearbox to the side gears.
• Adjustable Rear Door: The two-position rear door can be hydraulically adjusted upwards to allow for tilling operations.
• Shear Bolt Safety System: Equipped with shear bolts on both sides to prevent shock and impact damage.
• Hydraulic Safety System: The folding mechanism is controlled by two hydraulic cylinders and a controlled block valve with a safety lock, ensuring secure transport.
• High-Strength Axle: Features a 120mm diameter, high-alloy, single-piece axle for superior strength.
• Front Leveling Discs: Equipped with a disc at the front to level the soil.

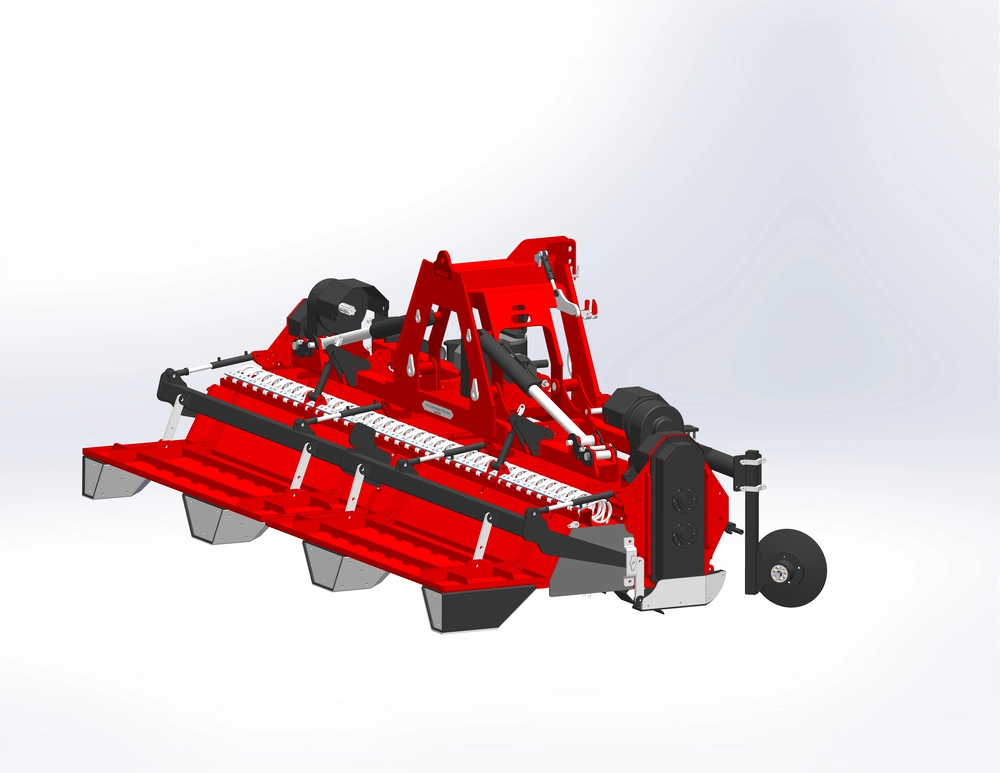

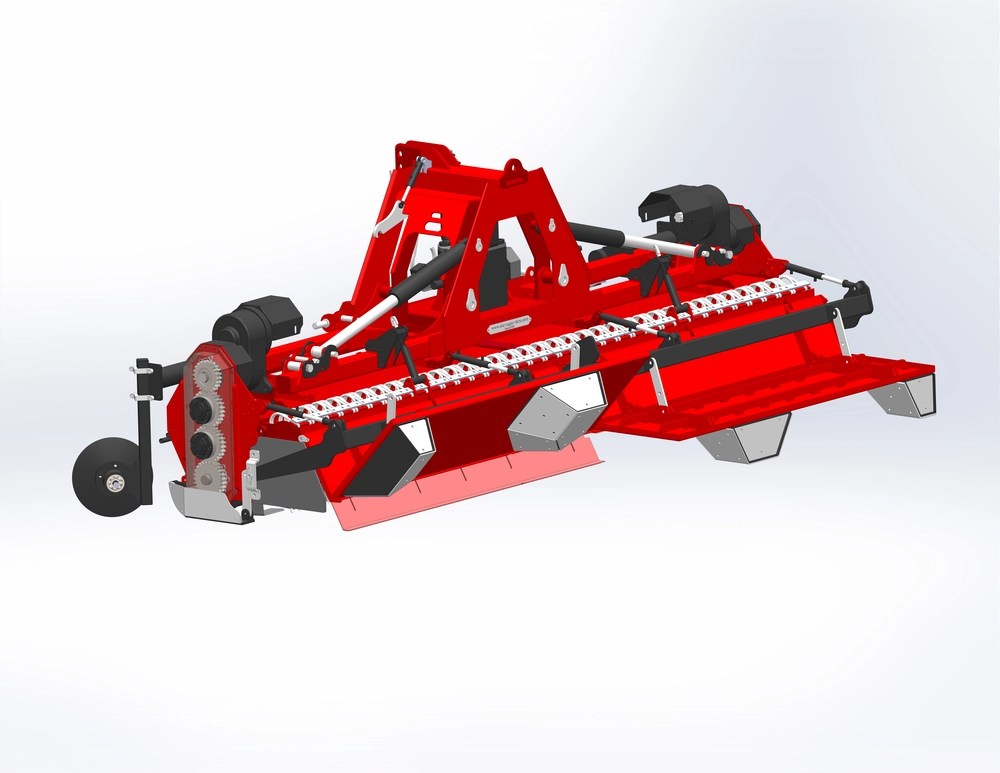

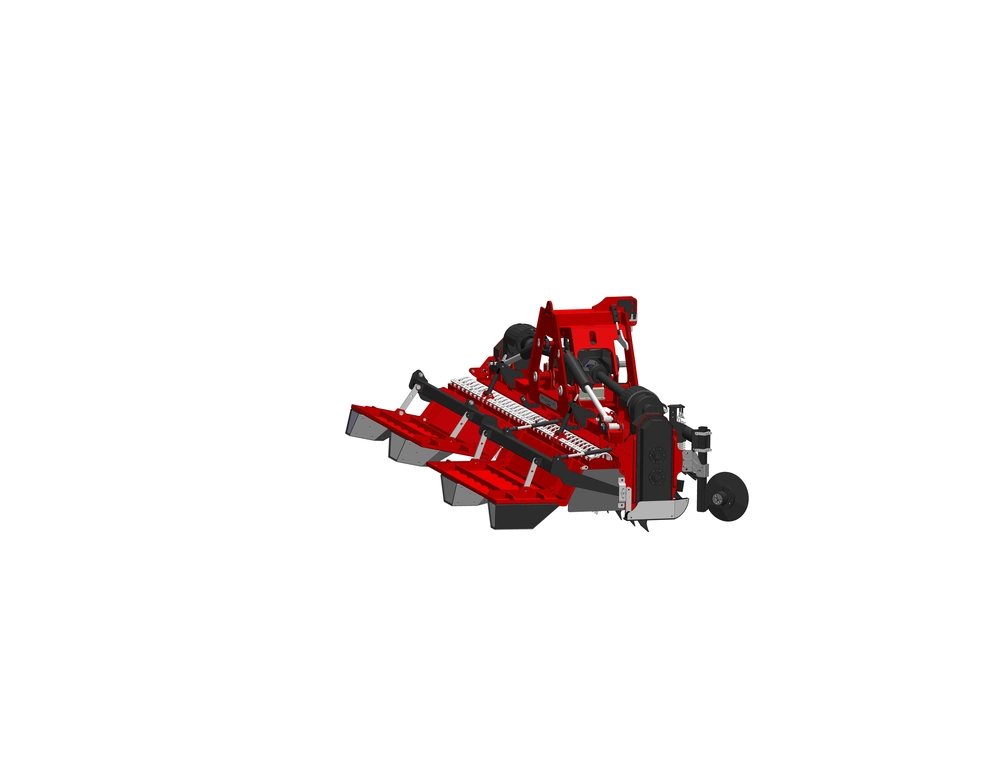

• Ridger System: Includes a ridger system and shredding springs behind the blades to create furrows after tilling.
• Durable Gears: Features 35mm wide gears for added durability.
• Built-in Leveling Indicator: The machine is equipped with a leveling indicator for easy adjustment and on-the-spot balancing.
• Unique Flange Design: The unique flange design features blades spaced just 5cm apart, interlocking to prevent any unturned soil.
• Deep Tilling Blades: Features deep tilling blades (shanks) at the front, in line with the tractor’s tires.
• Adjustable Ridger System: The ridger system can be adjusted to suit different crops.
• Increased Performance: The machine enhances efficiency and precision in tilling

operations, making it adaptable to various crops.

­
