Description

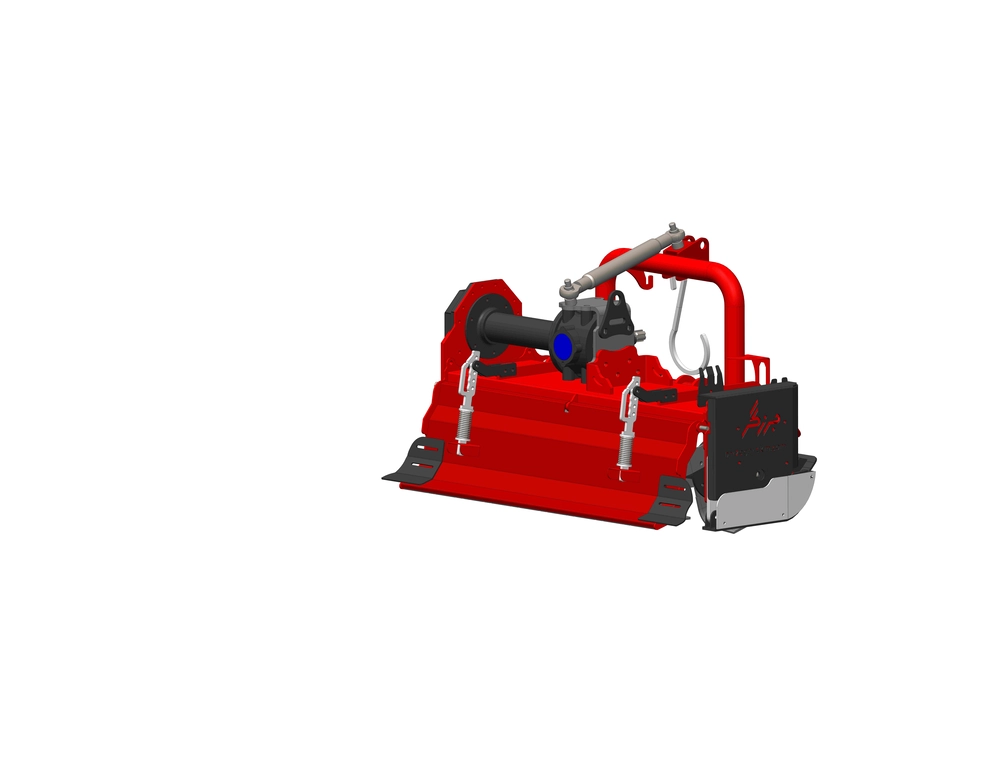

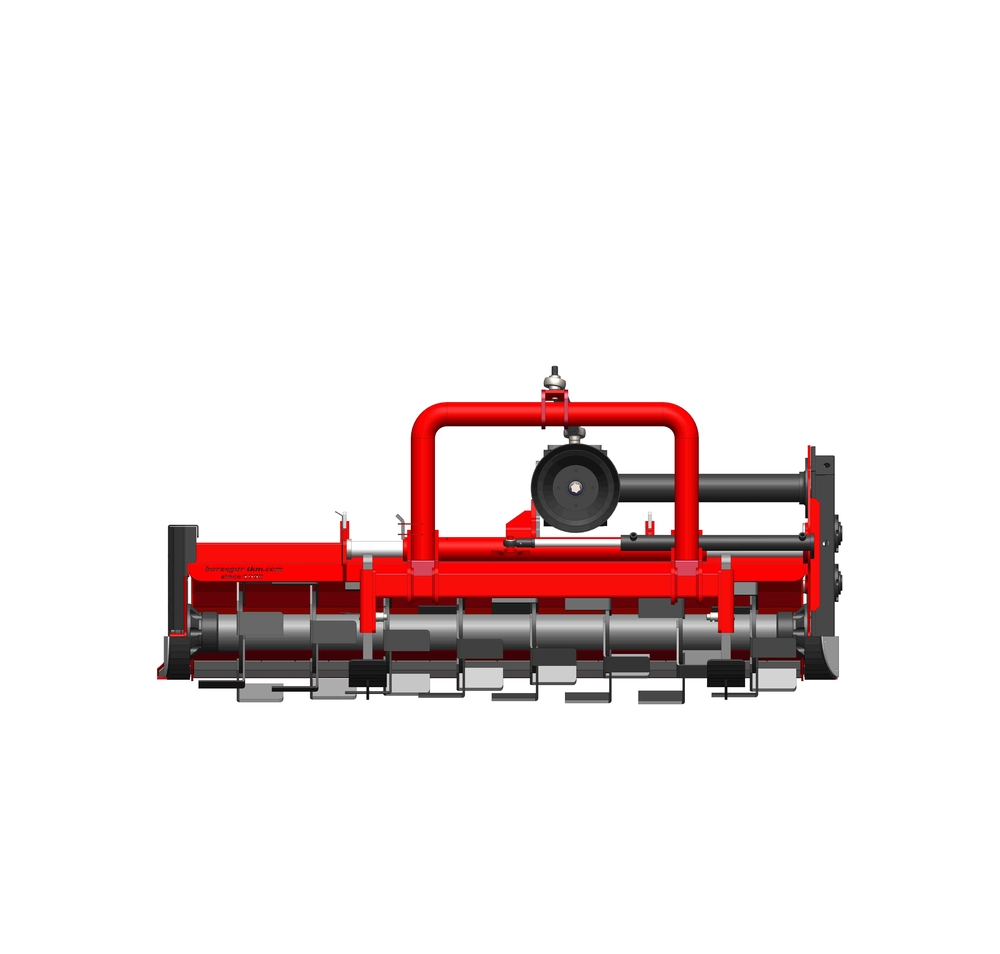

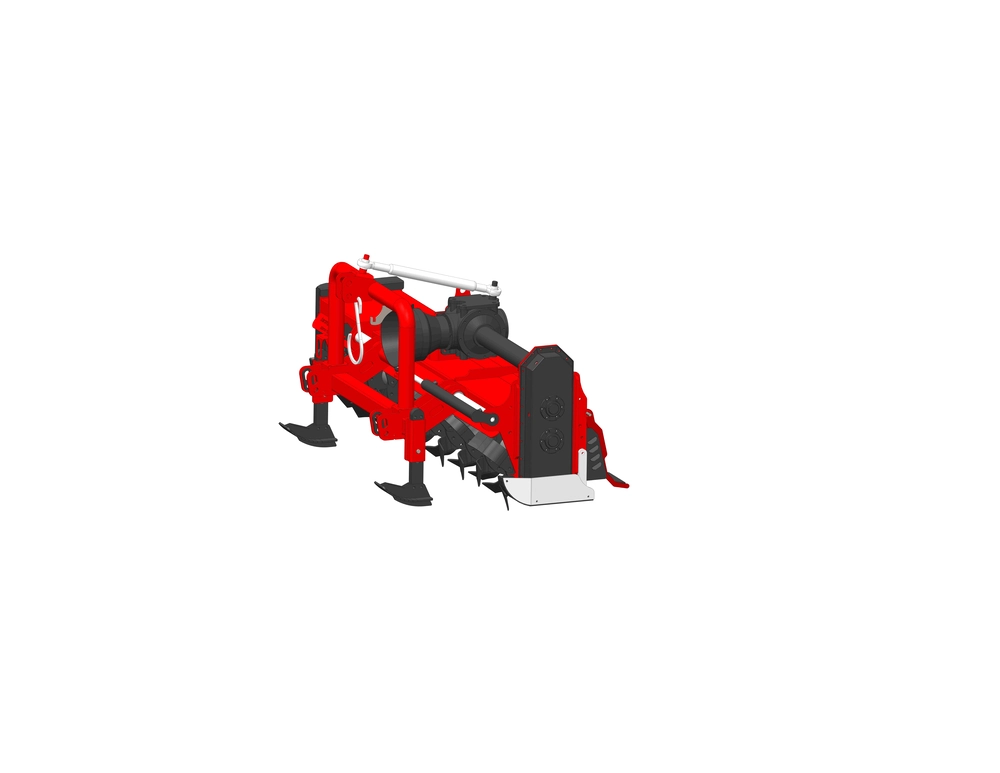

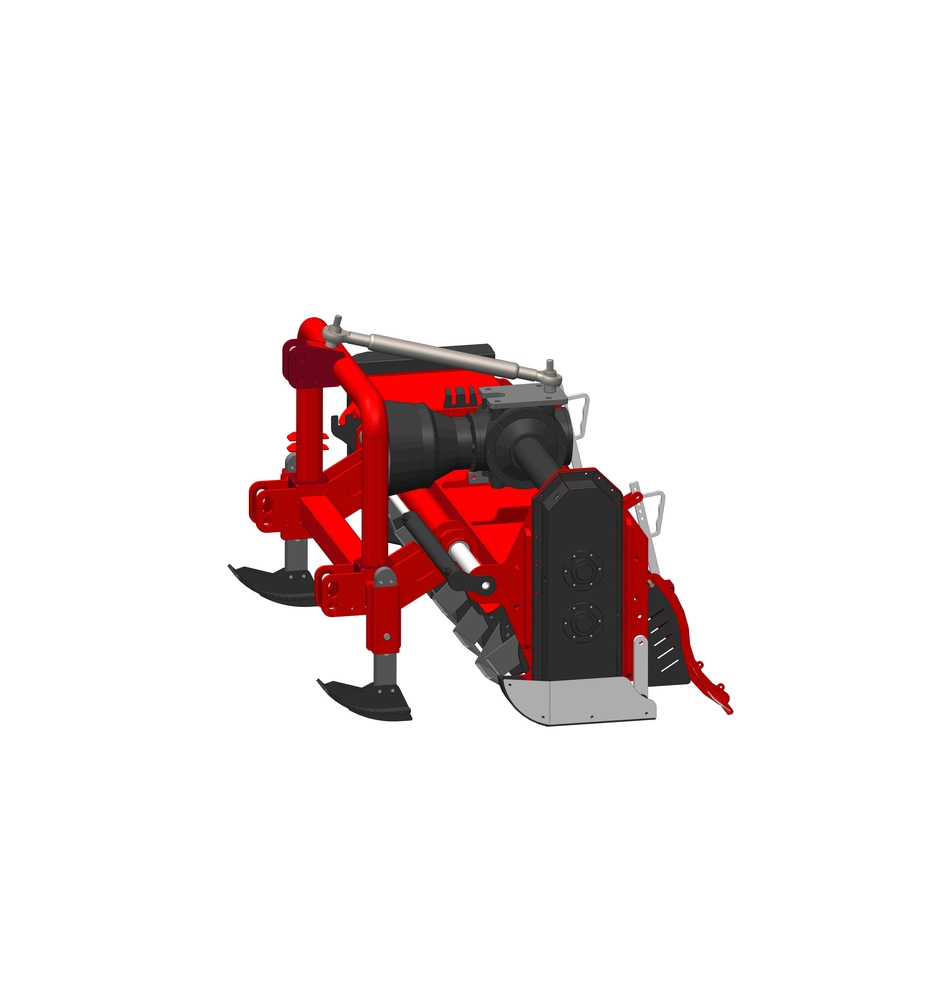

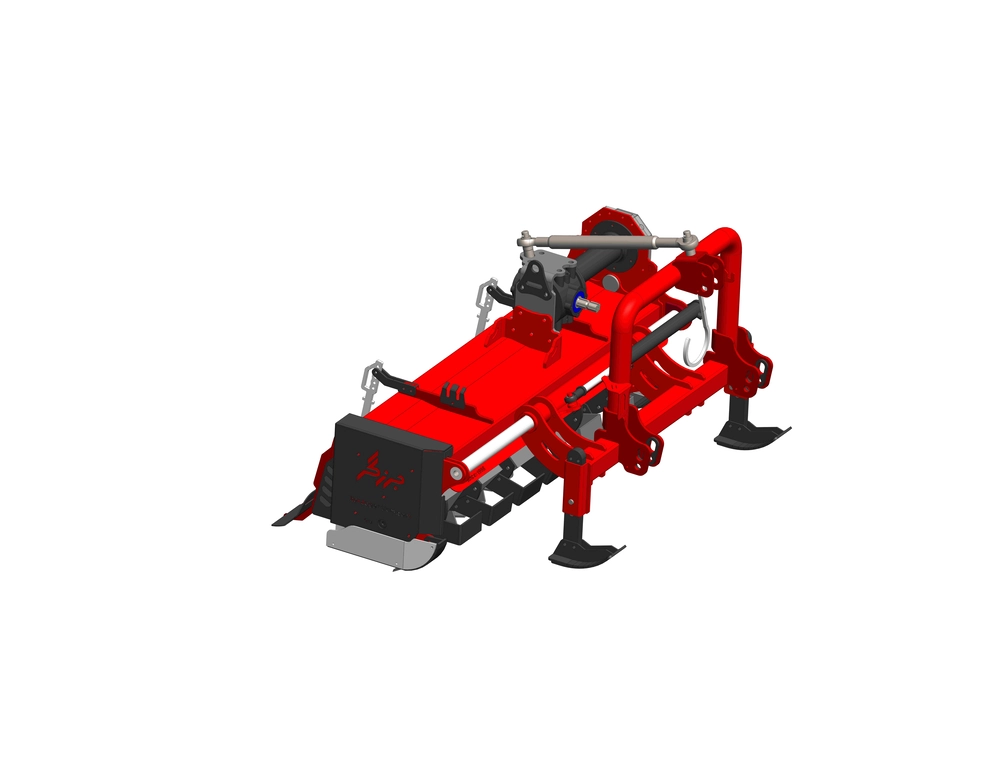

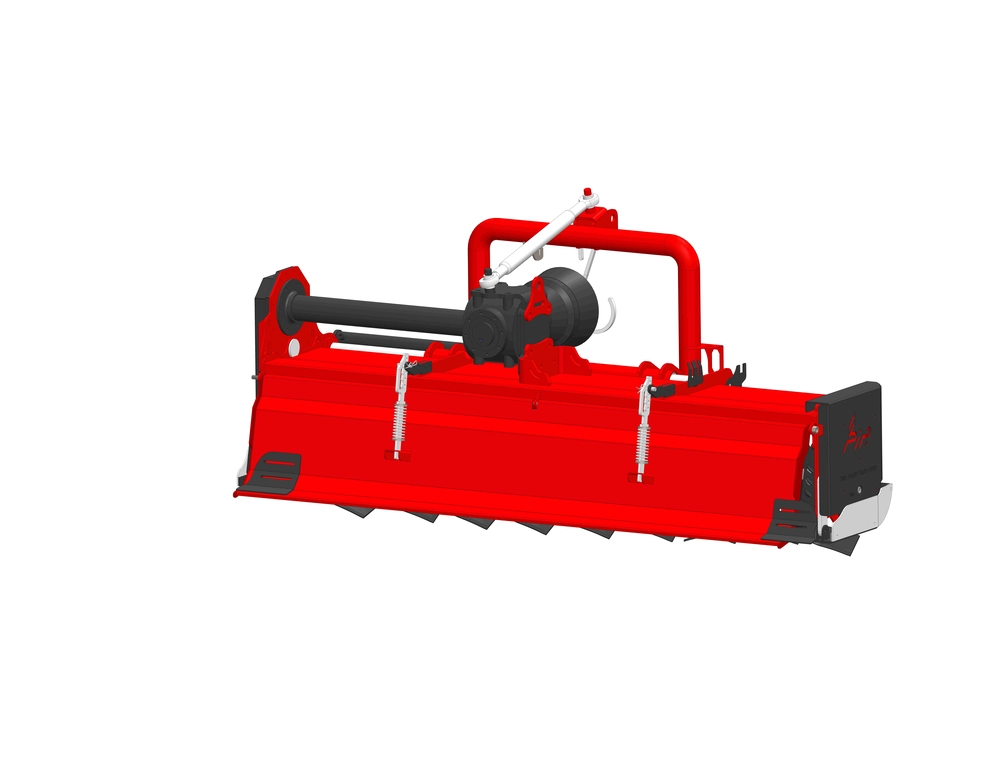

Hydraulic Sliding Rotary Tiller (Orchard & Agricultural)

(For orchard tractors, 30 to 75 HP)

Device Application

This machine is used for initial tillage in orchards, greenhouses, and vegetable farms to eliminate weeds.

Key Features

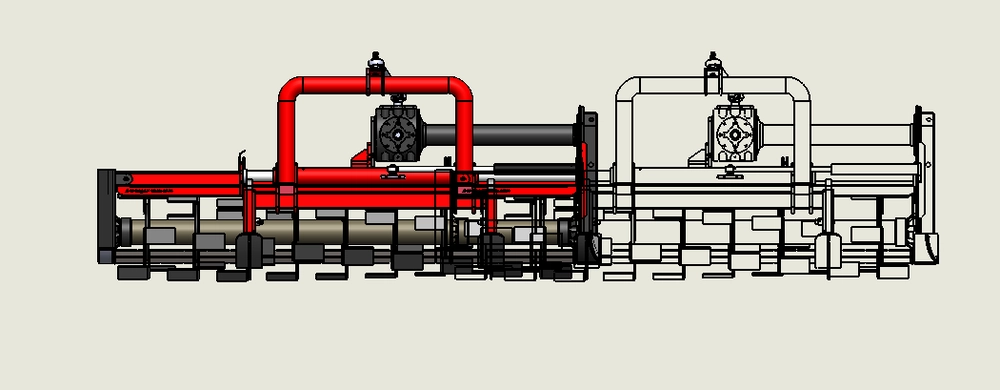

1. Hydraulic Offset: Equipped with a hydraulic cylinder for offset adjustment.

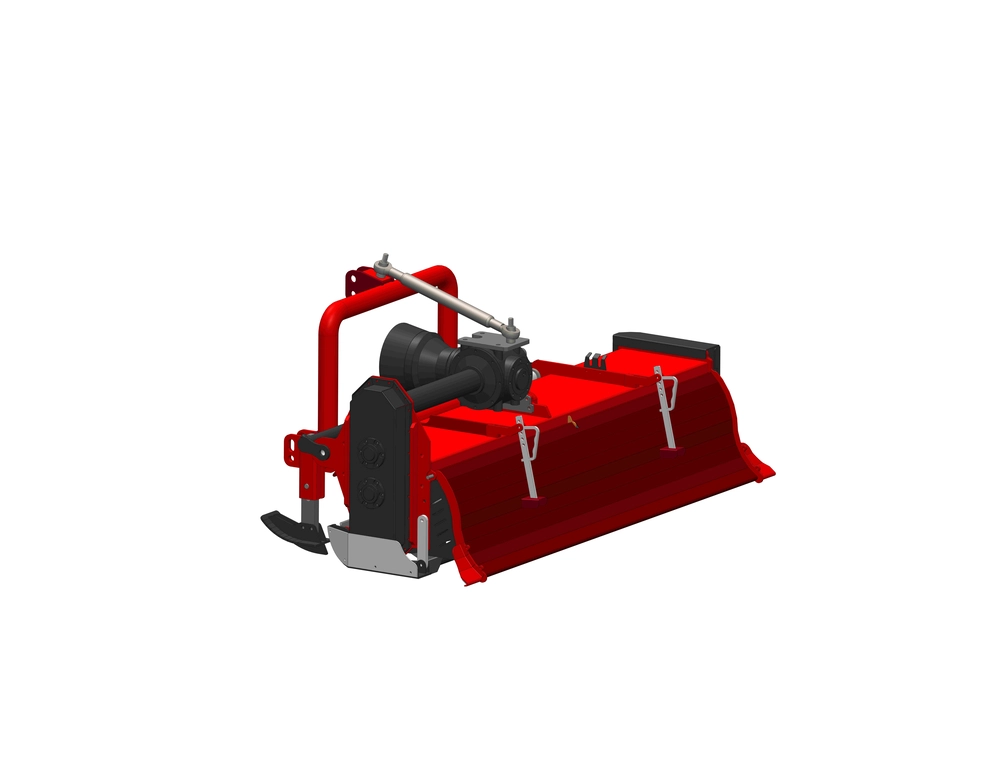

2. Rear Flap: The rear flap is spring-loaded for ground leveling. On ultra-heavy-duty tillers, this is a hydraulic feature.
3. Durable Plates: Features 12mm plates to prevent premature blade wear.

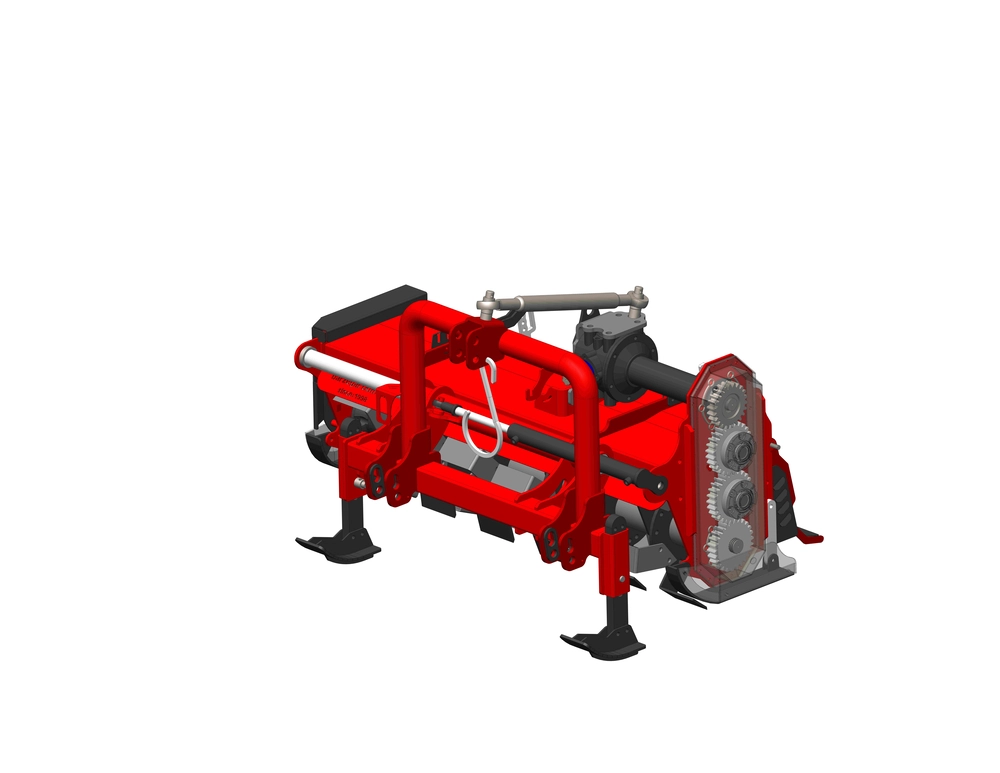

4. Robust Transmission: The power transfer system uses 30-35mm wide gears for enhanced durability.
5. Durable Shaft: Equipped with a single-piece, high-alloy shaft with a diameter of 90-120mm.
6. Dual-Row Bearings: Uses double-row ball bearings on both sides for flexibility against impacts from the flange.
7. Oil-Filled Hubs: Features oil-filled side hubs, eliminating the need for greasing.
8. Clutch-Type PTO Shaft: Comes with a clutch-type PTO shaft.
9. Secondary Tillage Capability: The machine’s weight allows it to break up clods, making it suitable for secondary tillage as well.
10. Flexible Hitch: Features a movable three-point hitch made of pipe and box sections.
11. Fixed Gearbox: A unique feature is its fixed gearbox, which prevents high wear and tear.
12. Unique Flange Design: The flange has a unique design with blades spaced 5cm apart to prevent any untilled gaps.

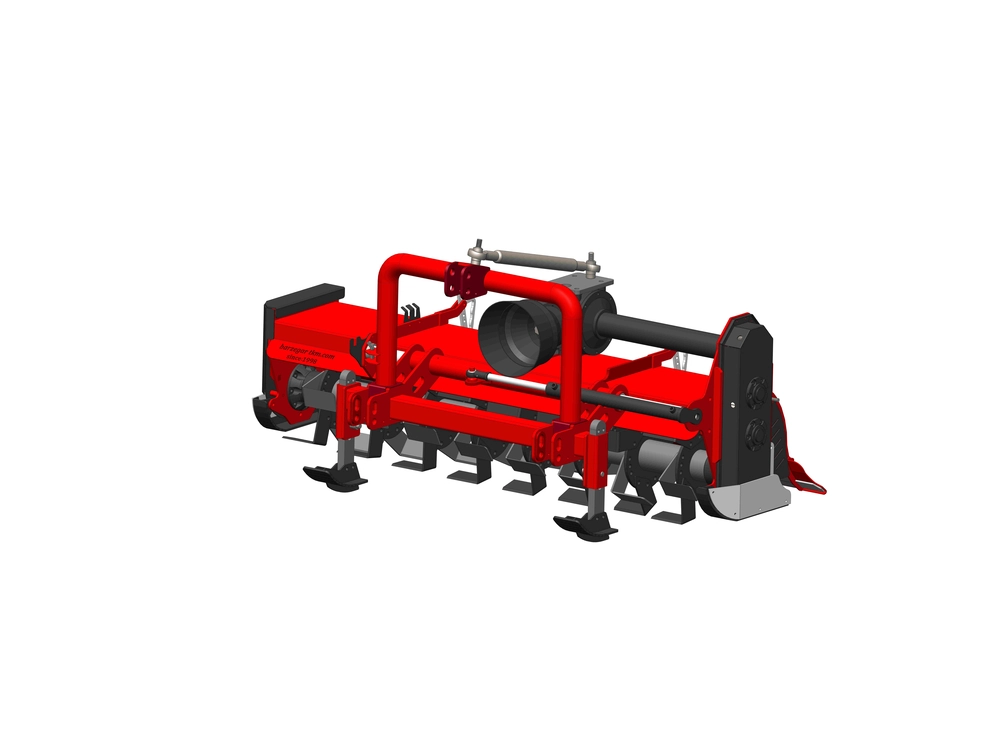

13. Depth Control Skids: Features depth-adjusting skids on the front and sides of the machine.
14. Toolbox: Comes with a built-in toolbox.
15. PTO Shaft Guard: Equipped with a protective guard for the PTO shaft.
16. High-Quality Materials: Uses high-quality materials, including ST52 steel with engineered bends, to increase the machine’s durability and working life.
17. Optimal Blade Configuration: Each flange plate has 6 blades with standard spacing to prevent untilled gaps, maximize blade life, and ensure an effective working width.
18. Sealed Gearbox: The gearbox is sealed to keep gears lubricated with oil and a proper bearing support, preventing the ingress of water and dust.
19. Side Dust Covers: Features side dust covers to prevent rocks and clods from being thrown around.

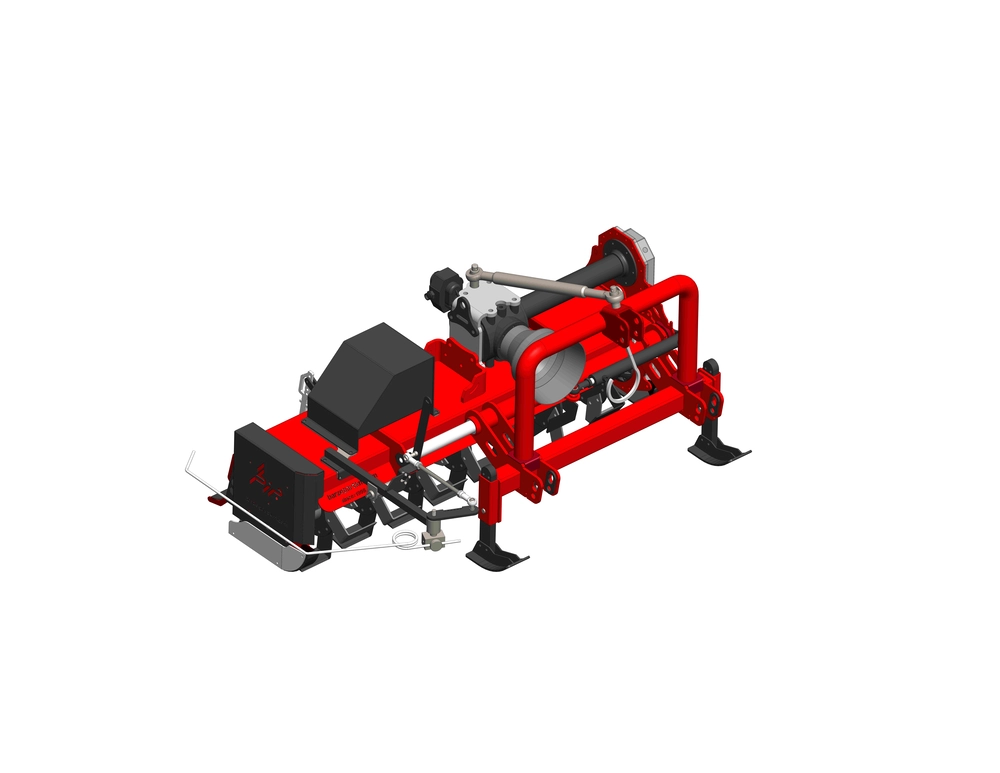

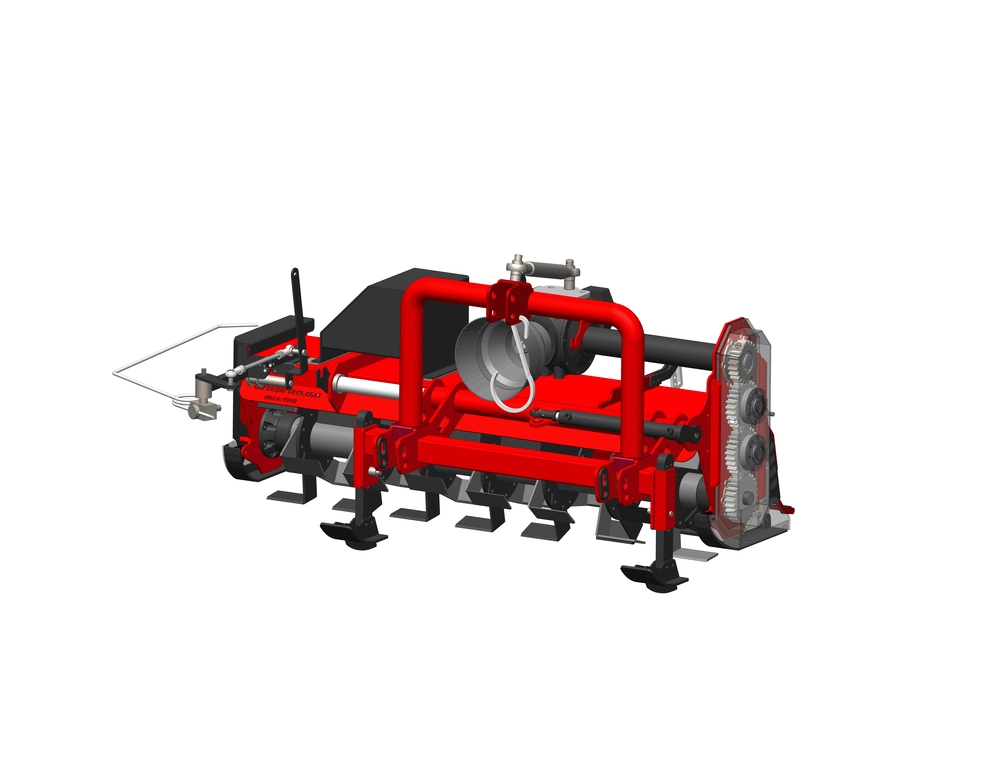

20. Optional Sensor: Sensors can be installed on all machines upon customer request.
21. Increased Efficiency: The sensor detects the machine’s distance from trees, increasing work speed and saving time.
